Binder ED-S Solid Line - Heating Ovens

Binder

Binder ED-S Solid Line - Heating Ovens

Drying and heating chambers with natural convection
Oven Volume : 56 litres
Quantity

  • 56L and 155L capacity
  • Temperature range: +7℃ above ambient temperature to +250℃
  • APT.line™ preheating chamber technology
  • Natural convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • 1 chrome-plated rack, incl. shelf supports
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening
Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

The BINDER ED-S Solid.Line are suited to drying and heating with applications geared towards research and quality assurance. Featuring natural convection, accurate temperature control Solid.Line impress with their tried-and-tested BINDER quality and reliability.

Benefits

  • 56L and 155L capacity
  • Temperature range: +7 ℃ above ambient temperature to +250 ℃
  • APT.line™ preheating chamber technology
  • Natural convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • 1 chrome-plated rack, incl. shelf supports
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening
Technical Specifications
Designation

EDS056-230V

Option model Standard
Order number 9090-0014
Data
Serie ED-S
Performance Data Temperature
Heating-up time to 150 ℃ [min] 60
Temperature fluctuation at 150 ℃ [± K] 0.8
Temperature range +7 ℃ above ambient temperature to 250 ℃
Temperature variation at 150 ℃ [± K] 2.8
Electrical data
Nominal power [kW] 1.05
Phase (Nominal voltage) 1~
Power frequency [Hz] 50/60
Rated Voltage [V] 230
Unit fuse [A] 6.3
Doors
Unit doors 1
Housing dimensions, not incl. fittings and connections
Depth net [mm] 577
Height net [mm] 625
Width net [mm] 614
Internal Dimensions
Depth [mm] 350
Height [mm] 440
Width [mm] 400
Measures
Interior volume [L] 62
Load per rack [kg] 15
Net weight of the unit (empty) [kg] 36
Permitted load [kg] 30
Wall clearance back [mm] 160
Wall clearance sidewise [mm] 100
Environment-specific data
Energy consumption at 150 ℃ [Wh/h] 180
Fixtures
Number of shelves (std./max.) 1/3
BIN-9090-014

Specific References

mpn
9090-014

Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.

16 other products in the same category:

PCH Series Personal Benchtop Cooler/Heater - PCH2

£1,169.45 vat excl.

£1,403.34 vat Inc.

Availability: Out of stock
  • Cooling/heating setting range from – 10ºC to 100℃, with very rapid cool down and heat-up times
  • Stability ± 0.1℃, uniformity ±0.25℃ at 37℃
  • Convenient integral reaction timer with audible alarm
  • Dry temperature control system maintains a clean and vibration-free working environment
  • A 2-line LCD display clearly indicates both set and actual values for temperature and time. Works in combination with simple push buttons for easy set-up.
  • Flexible tube sizes and rapid heat-up/cool-down times enables swift change of application
Availability: Out of stock

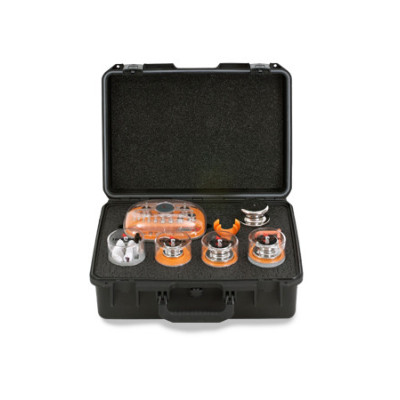

Troemner OIML Calibration Weight Sets offer the tightest tolerances, lowest uncertainties, and all surfaces are polished to a perfect finish to meet or exceed OIML R 111 tolerance and design restrictions. OIML Class E1, E2, F1, and F2 calibration weights are manufactured from high grade stainless steels including Troemner Alloy 8 which possesses closely controlled density, low magnetic susceptibility, and corrosion resistance.

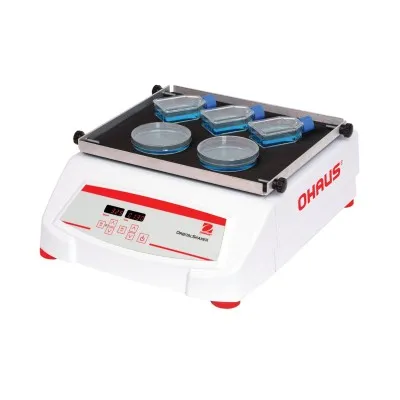

Heavy Duty Digital Orbital Shaker - SHHD1619DG

£3,677.46 vat excl.

£4,412.95 vat Inc.

Availability: Out of stock
  • Motion: Orbital, 19 mm
  • Capacity: 16 kg
  • Speed Range: 25 rpm to 500 rpm
  • Load sensor detects unbalanced conditions and automatically reduces to a safe speed
  • Applications: Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques

Heavy Duty Digital Orbital Shaker - SHHD4550DG

£4,830.00 vat excl.

£5,796.00 vat Inc.

Availability: 50 In Stock
  • Motion: Orbital, 51 mm
  • Capacity: 45.4 kg
  • Speed Range: 15 rpm to 300 rpm
  • Load sensor detects unbalanced conditions and automatically reduces to a safe speed
  • Applications: Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Availability: 50 In Stock
  • Pan size: 300 x 210mm
  • Available capacities: 4kg - 48kg
  • Available readabilities: 0.1g - 2g
  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Large, grade 304 stainless steel pan allows easy cleaning
  • Sealed keypad protects against dirt and spills
  • Checkweighing with audible alarm
  • Drip channels help divert spills away from the scales internal components
  • Internal counting resolution 1:600,000 for precise results
  • Parts counting optimisation automatically refines piece weight as parts are added
  • Parts counting with freely selectable sample sizes
  • For Calibration please contact the office.

Ohaus Rotor - Angle - 8x15ml RB or 4x15ml FA

£259.63 vat excl.

£311.56 vat Inc.

Availability: Out of stock
  • Maximum Speed: 6,800 rpm
  • Maximum Relative Centrifuge Force (x g): 4,445 g
  • Maximum Capacity(Rotor): 8 x 15 ml
  • Tube diameter without adapter: 18 mm / 15 ml
  • Outer/Inner Radius: 8.6 cm
  • Rotor Style: Angle
  • Aerosol tight: Not applicable
  • Acceleration Time (sec): 8 / 35
  • Angle: 32 deg.
  • Compatible Models: FC5707
  • Deceleration Time (sec): 7 / 25
  • Dimensions: 6.93 in (17.6 cm)
  • Maximum loading weight: 200 g
  • Net Weight: 1.72 lb (0.78 kg)
  • Working Environment: -4℉ to 122℉, 95% RH, non-condensing (Temperature: -20℃ to 50℃, Humidity: <  95%)

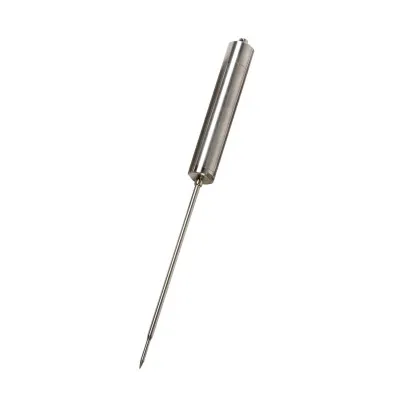

Stainless Steel ThermaData Data Logger - 150mm Probe
