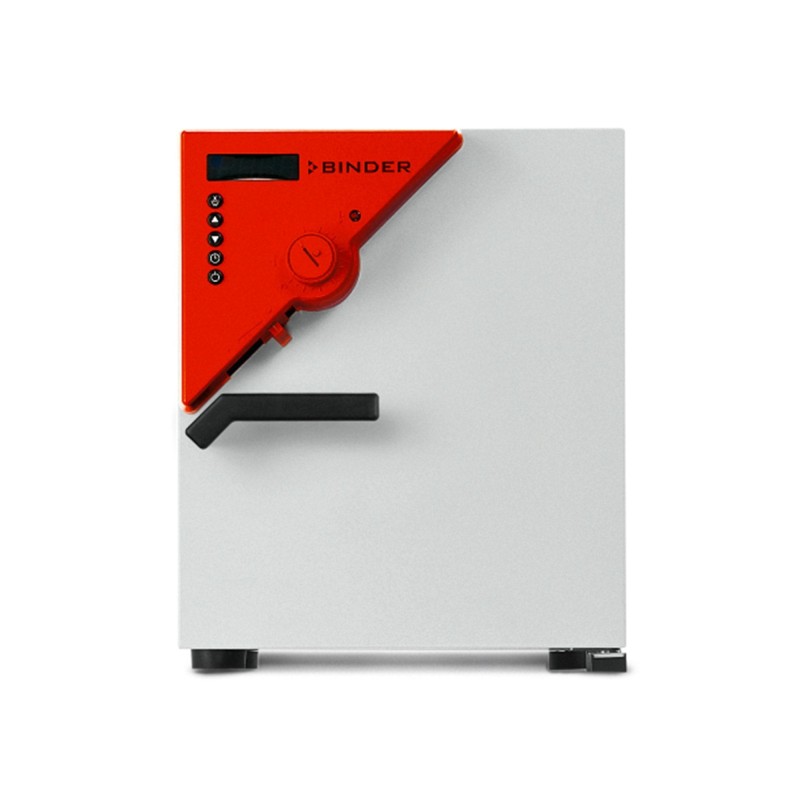

BINDER FD Series heating oven features fully homogeneous temperature distribution, quick dynamics and a powerful fan. Designed for use when fast drying and sterilization is required. BINDER drying chambers are renowned for their high quality and reliability.
Benefits
- 23L to 720L capacity
- above ambient temperature to +300 ℃
- APT.line™ preheating chamber technology
- Forced convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 to 4 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Technical Specifications
| Designation |
FD023-230V*
|
| Option model |
Standard |
| Order number |
9010-0194 |
| Data |
| Serie |
FD |
| Performance Data Temperature |
| Heating-up time to 150 ℃ [min] |
25 |
| Recovery time after 30 seconds door open at 150 ℃ [min] |
6 |
| Temperature fluctuation at 150 ℃ [± K] |
0.3 |
| Temperature range +5 ℃ above ambient temperature to |
300 ℃ |
| Temperature variation at 150 ℃ [± K] |
2.5 |
| Air change data |
| Air change (approx.) at 150 ℃ [x/h] |
64 |
| Electrical data |
| Nominal power [kW] |
0.8 |
| Phase (Nominal voltage) |
1~ |
| Power frequency [Hz] |
50/60 |
| Rated Voltage [V] |
230 |
| Unit fuse [A] |
10 |
| Doors |
| Unit doors |
1 |
| Housing dimensions, not incl. fittings and connections |
| Depth net [mm] |
520 |
| Height net [mm] |
495 |
| Width net [mm] |
435 |
| Internal Dimensions |
| Depth [mm] |
300 |
| Height [mm] |
330 |
| Width [mm] |
222 |
| Measures |
| Interior volume [L] |
20 |
| Load per rack [kg] |
12 |
| Net weight of the unit (empty) [kg] |
27 |
| Permitted load [kg] |
25 |
| Wall clearance back [mm] |
160 |
| Wall clearance sidewise [mm] |
100 |
| Environment-specific data |
| Energy consumption at 150 ℃ [Wh/h] |
300 |
| Fixtures |
| Number of shelves (std./max.) |
2 to 4 |
*All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 ℃ ±3 ℃ and a power supply voltage fluctuation of ±10 %. The temperature data is determined in accordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. Technical data refers to 100 % fan speed. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
