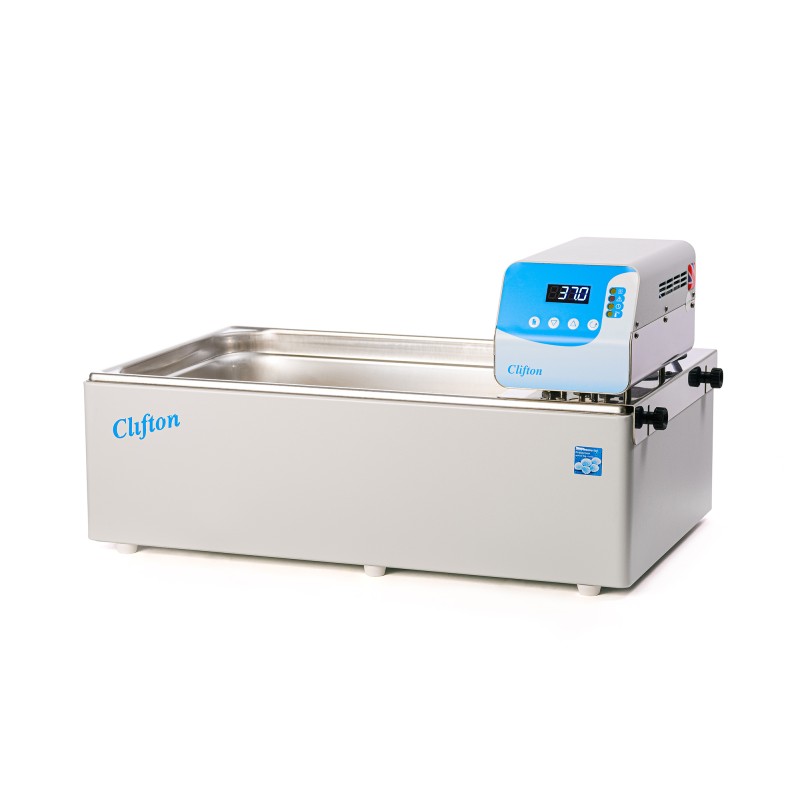

NE4-22D stirred Digital Bath
    NE4-22D stirred Digital Bath

Clifton by Nickel Electro

NE4-22D stirred Digital Bath

Quantity

  • Digital Thermostirrer complete with 22 Litre Stainless Steel Tank and Shelf
  • Dimensions - External: 537(w) x 332(d) x 170(h) mm / Internal: 395(w) x 298(d) x 150(h) mm
  • Water level: Maximum 130mm shelf fitted working depth 85mm
  • Nominal Tank Capacity: 22 Litres
  • Temperature Range: ambient +5℃ - 99℃ Accessory DC1-300 provides counter cooling from ambient to -20℃
  • Temperature control: PID Digital, LED display, resolution 0.1℃
  • Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
  • Sensitivity: ±0.05℃
  • Uniformity: ±0.01℃
  • Timer: Variable, 00:01 to 99:59 hh:mm. Activates at set temperature. End timed period, audible buzzer and and "end" message
Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

Clifton from Nickel Electro Stirred water baths feature a digital PID temperature controller and are designed for immersion of flasks, bottles, and racks in an accurate temperature environment throughout the water bath. The stainless steel tank is housed in a sturdy outer case and is supplied complete with a stainless steel shelf which provides even water circulation and temperature stability.

Benefits

  • Digital Thermostirrer complete with 22 Litre Stainless Steel Tank and Shelf
  • Dimensions - External: 537(w) x 332(d) x 170(h) mm / Internal: 395(w) x 298(d) x 150(h) mm
  • Water level: Maximum 130mm shelf fitted working depth 85mm
  • Nominal Tank Capacity: 22 Litres
  • Temperature Range: ambient +5℃ - 99℃ Accessory DC1-300 provides counter cooling from ambient to -20℃
  • Temperature control: PID Digital, LED display, resolution 0.1℃
  • Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
  • Sensitivity: ±0.05℃
  • Uniformity: ±0.01℃
  • Timer: Variable, 00:01 to 99:59 hh:mm. Activates at set temperature. End timed period, audible buzzer and and "end" message

The thermostirrer is manufactured from stainless steel for durability. Painted surfaces feature a tough anti-bacterial finish with good chemical resistance. Easy to use controls which are wipe clean and have an anti-bacterial finish. Immersed components are corrosion resistant. The efficient stirrer is quiet in use and provides excellent temperature stability. Indication of heating, over-temperature alarm and timer running.

When a low liquid level is detected a “FiLL” message automatically appears and heating is suspended. Once refilled, heating is restored and temperature control resumes automatically. Over and under temperature alarms automatically protect samples in the water bath.

Featuring a bold LED display of measured temperatures in real-time and in increments of ±0.1℃, using a precision PID temperature controller. Setting for water temperature only or a combination of temperature and time. Timer setting variable in 1-minute increments from 00:01 [hh:mm] to 99:59 [hh:mm] with “end” message on completion of the timed period. Time and temperature settings are retained in the memory, even after the unit has been turned off.



NE-NE4-22D
