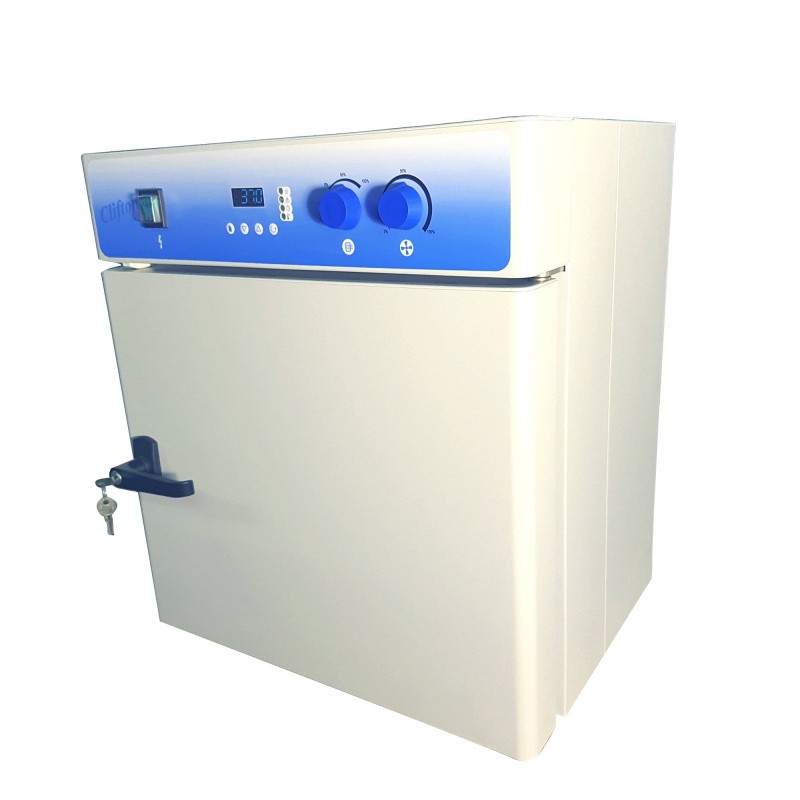

Clifton from Nickel Electro NE8 Incubators feature intuitive easy to use controls with a bold illuminated LED display, offering precise temperature control from ambient +5_ to 100_ with timer functions.
These Incubators can run at set temperature immediately, use a run back timer or enable a delay start feature. Can be configured for gravity convection or with variable fan speed providing forced air circulation within the chamber.
Specifications
- Capacity: 15-litre chamber Working capacity of the chamber can be smaller.
- Dimensions - External: 520(w) x 390(d) x 600(h) mm / Internal: 320(w) x 180(d) x 240(h) mm
- Temperature Range: Ambient +5_ to 100_
- Temperature Alarm: Over-temperature alarm is automatically set 5_ above set point
- Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1_
- Temperature Sensor: pt100 with control diagnostics at power up
- Temperature Fluctuation 37_: ±0.2_ @ 37_ Measurements based on temperature readings on shelf in centre of the chamber.
- Temperature Variation 37_: ±0.5_ @ 37_ Measured in vertical axis in the chamber using Wired Shelves.
- Temperature Control & Run Back Timer: Visual indicator and end messaging 00:01 to 99:59 (hh:mm) activates at set temp
- Temperature Control & Delay Start Timer: Heating commences at a set time in the future, within 24 hours
- Chamber convection: Fan speed can be set from 0% gravity convection within the chamber variable to 100% for forced air convection.
- Exhaust air flap: Adjustable 0 to 100% chamber venting
- Access Port: 35mm port size, perforated flap cover helps to reduce losses when fitting independent external probes or thermocouples.
- Door configuration: Single insulated door, lockable with 2 point door engagement for an even seal
- Door Alarm: Door open, heating interrupted, delay before door sounder chimes until door closed, heating resumes
- Inner Door: Clear polycarbonate inner hinged door
- Shelves fitted & maximum: 1 wire / 3 max
- Shelving Locations: Available every 20mm vertically
- Shelf Maximum Load: 10kg
- Heater Power: 450W
- Voltage: 230V 50/60Hz
- Stackable: Yes
- Feet/Castors: Levelling Feet
The chamber is constructed from high-quality stainless steel, lagged with high-efficiency thermal insulation, all contained within an outer steel housing with an anti-bacterial paint finish.
With energy efficiency in mind, particular attention is paid to a robust design, insulation, a tight door closure with silicone seal and hinge design to maintain chamber temperatures with intelligent temperature control.
Notes
- Before ordering please check the room or building access where this unit will be installed and electrical power requirements.
- Temperature fluctuation measurements are based on temperature readings on shelf in center of the chamber.
- Working capacity of chamber may be smaller.
- Incubators up to 112 litres are stack-able.
- Do not place in direct sunlight or near a heat or cold source.
- Allow a 100mm air gap away from wall at rear. Ensure there is a minimum 300mm air gap from top of the unit to ceiling.
