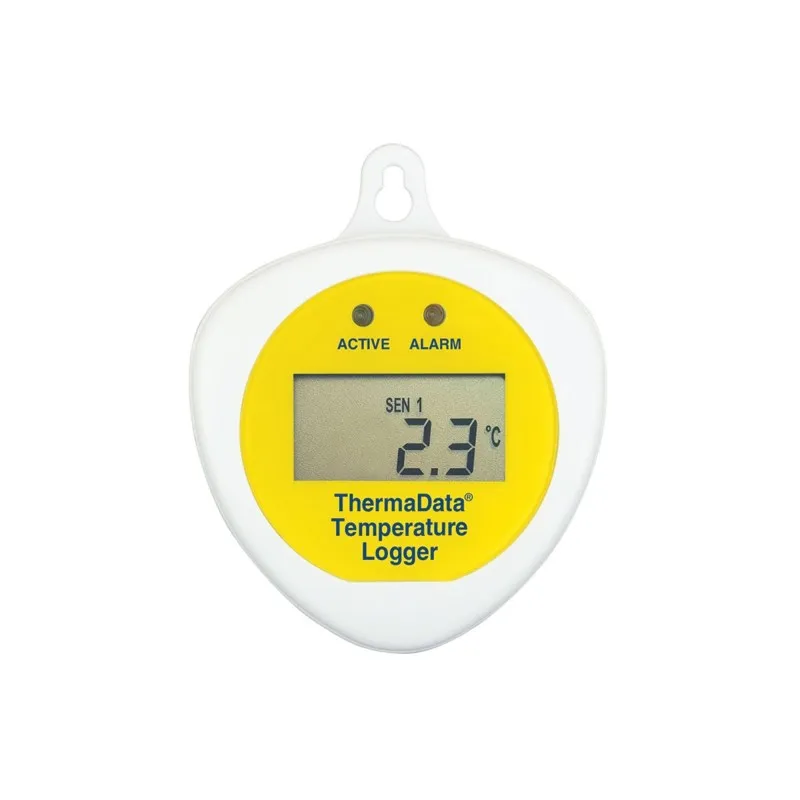

ETI ThermaData TD data logger has the benefit of a 10mm LCD screen to give visual confirmation of temperature readings. It incorporates an internal NTC thermistor sensor that measures over the range of -30 to 85 ℃ and can record up to 4000 readings.
The ThermaData® logger TD data logger is housed in a waterproof, ergonomic case that is designed to meet IP66/67 protection.
Communications are via a USB cradle that is supplied with the ThermaData® Studio Software. Please note: when ordering loggers it is necessary to order at least one ThermaData® logger cradle.
Benefits
- NTC thermistor sensor
- Temperature range -30 to 85℃
- Records up to 4000 readings
- 2 LED's plus LCD display
- Meets EN 12830:1999, S & T, C & D, 1
Each logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded. Communications are via a USB cradle that is supplied with the ThermaData Software.
ThermaData® Studio PC software
The ThermaData logger is connected to a PC via a USB cradle. By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary. The information can be analysed by zooming in, saving as Studio File or exporting as a text (.txt) or Excel (.xls) file to other software packages. The ThermaData Studio software incorporates several useful functions, including the ability to display two traces on a graph, the trace colours are user selectable. All files can be viewed as thumbnail icons for easy identification.
The ThermaData Studio software will work equally with all ThermaData loggers. The software is both powerful and sophisticated, yet user-friendly enabling temperature data to be organised and analysed to provide management information. The software allows the user to programme the logging sample/interval rate (0.1 to 255 minutes), the real-time clock, ℃ or °F, delayed start (maximum 23 hours, 59 minutes and 59 seconds) or select a magnetic start option. It is also possible to include a 32-character user ID for each logger.
By selecting continuous logging in the software options, it is possible to start the ThermaData logger only once and never have to reset its parameters again, even if downloaded regularly. Unlike most low-cost loggers, the ThermaData logger will continue recording during and after downloading the data. The ThermaData Studio software is supplied with each USB cradle. Please note: when initially ordering loggers it is necessary to order at least one ThermaData logger cradle.
