Designed for the future, flexible: Fixed time measurement, plateau and maximum search functions. You can freely program all relevant parameters. The CryoStar can also be set to conform with all national and international standards (including future ones).
Easy to use: The operation is menu guided on the touch screen in the language of your choice. German and English are currently available.
Sure Performance: The reliable cooling system ensures rapid operational readiness even in high-temperature environments (max. approx. 34℃).
Fast: Depending on actual setting used, up to 40 samples can be measured per hour.
Versatile: The CryoStar is equipped with a serial connection for standard printers und an USB port for connections to a PC. Measured values can be saved to a USB-drive for further processing.
Handy: The CryoStar is small, light and easy to handle. The percentage of added water content is directly displayed and printed. The calibration is carried out automatically. All settings and calibration values are retained in a non-volatile memory

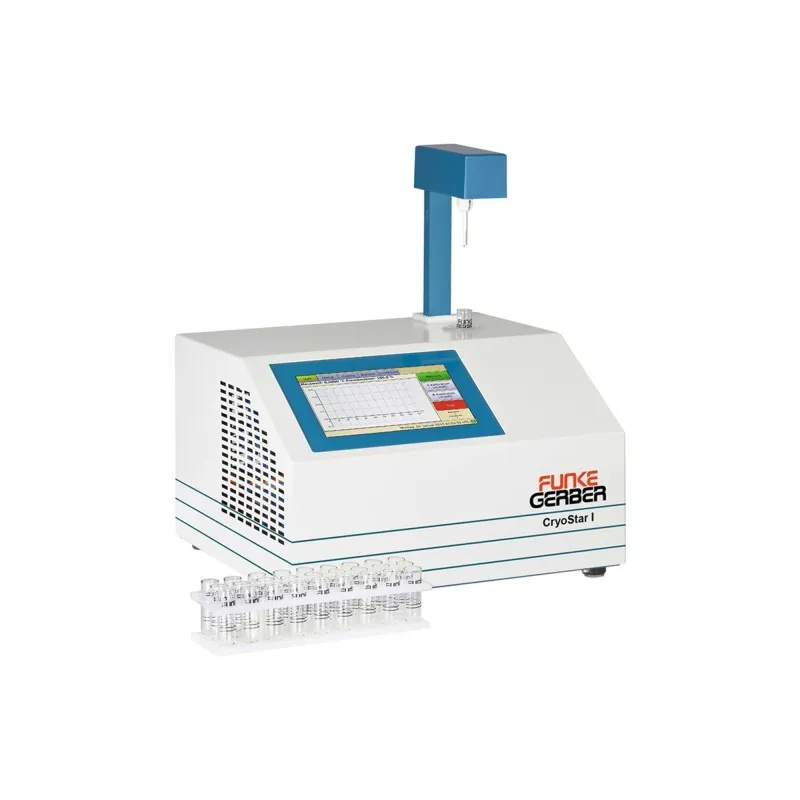

The Funke Gerber CryoStar is a highly accurate and reliable Cryoscope for high accuracy freezing point determination (FPD). The CryoStar uses FPD to find the plateau as prescribed in the ISO/IDF/DIN 5764 standard for measuring water in milk. The 4 decimal place accuracy of the CryoStar gives excellent repeatability and ultimately confidence in the instruments results.
Benefits
Designed for the future, flexible: Fixed time measurement, plateau and maximum search functions. You can freely program all relevant parameters. The CryoStar can also be set to conform with all national and international standards (including future ones).
Easy to use: The operation is menu guided on the touch screen in the language of your choice. German and English are currently available.
Sure Performance: The reliable cooling system ensures rapid operational readiness even in high-temperature environments (max. approx. 34℃).
Fast: Depending on actual setting used, up to 40 samples can be measured per hour.
Versatile: The CryoStar is equipped with a serial connection for standard printers und an USB port for connections to a PC. Measured values can be saved to a USB-drive for further processing.
Handy: The CryoStar is small, light and easy to handle. The percentage of added water content is directly displayed and printed. The calibration is carried out automatically. All settings and calibration values are retained in a non-volatile memory
Testing milk for added water is an important quality control check carried out in dairies worldwide. Adding water to milk increases the freezing point of the milk by a fraction of a degree. This is measured using a machine called a Cryoscope which can detect added water in milk with precision down to a thousandth of a degree Celsius.
Technical Specification
Connection:
230V/115 V AC (50...60 Hz), 180 VA
Measurement Resolution:
0.0001 ( 0.1 ℃ )
Repeatability:
± 0.0020℃ ( ± 2,0 )
Measuring Range:
0.0000 to -1.5000℃
Sample Volume:
2.0 ml to 2.5 ml
Sample Rate:
up to 40/hr typically 30/hr
Interfaces:
2x serial, 2x USB, Ethernet
Cooling Time:
approx. 15 min
Display:
7“ graphic color touch display, showing freezing curve, measurement result [℃], [% added water] date, time, measuring conditions
Protocol Printing:
measurement result [℃], [% added water] date, time, measuring conditions
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
30 Litre Heated, Timed, Ultrasonic baths, with drain outlet
Dimensions - External: 570w x 350d x 320h mm / Internal: 500w x 300d x 200h mm
Temperature Range: 30℃ to 80℃ in 5℃ increments.
Temp. Control: Analogue Dial Pointer
Timer: Time setting 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes and run time of up to 8 hours
Ultrasonic Effective Power: 300W
Ultrasonic peak power: 1200W
Ultrasonic operating frequency: 37kHz
Supplied with a lid and basket.
Drain is easy to reach on the rear of the bath, with a drain tap on the side making it easy to open and close with clear symbols on position and function.
Measuring range -30℃ to +75℃ Probe: -200℃ to +250℃
Accuracy ±0,2℃ (-30℃‚ to 30℃) ±0,5℃ for the remaining measuring range Probe: ±2.0℃ (-200℃ to -100℃) ±1.0℃ (-100℃ to -20℃) ±0.2℃ (-20℃ to +60℃) ±0.5℃ (+60℃ to +250℃)
Resolution 0,1℃
Storage temperature -40℃ to +85℃
Memory 120.000 measured data
Sensor PT 1000
Sample Rate 1 sec. - 24 h
Probe L: 50 mm, diameter: 5 mm
Cable Cable length: 1 m / PTFE waterproof, oilproof and food safe
Cooling/heating setting range from – 10ºC to 100℃, with very rapid cool down and heat-up times
Stability ± 0.1℃, uniformity ±0.25℃ at 37℃
Convenient integral reaction timer with audible alarm
Dry temperature control system maintains a clean and vibration-free working environment
A 2-line LCD display clearly indicates both set and actual values for temperature and time. Works in combination with simple push buttons for easy set-up.
Flexible tube sizes and rapid heat-up/cool-down times enables swift change of application
