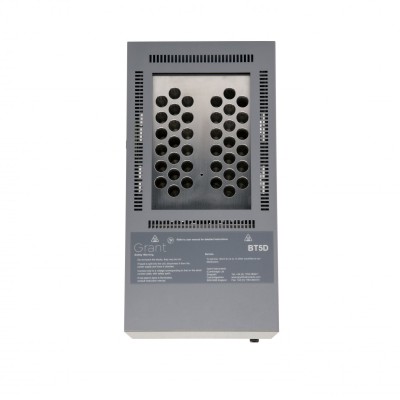

Grant BT5D is a convenient digitally controlled dry block heating system for high-temperature applications where the use of a bath is not desirable. It provides temperature control without the need for fluids and reduces the risk of contamination.
Benefits
- Temperature range ambient plus 10 to 400∫C
- Stability ±0.5∫C, uniformity 1%
- Timed or continuous operation
- Robust construction for long term durability and reliability
- Digital controller for accurate and reproducible time and temperature setting
- An adjustable overtemperature cut-out protects users, valuable samples and the workplace
- Choice of two models: BT5D-16 for 38x√Éò 16mm tubes and BT5D-26 for 22x√Éò 26mm tubes
Applications
- Veterinary laboratories wheredigestion of tissue samples for lead analyses
- Chemical laboratories whereorganic synthesis
- Technology and research wherematerials (explosives) testing
- Any application requiring heating in a dry block up to 400∫C
Specifications
| |
BT5D-16 |
BT5D-26 |
| Dimensions (hxdxw) |
145x420x205mm |
145x420x205mm |
| Capacity |
38xdia. 16x60mm (depth) tube |
22xdia. 26x60mm (depth) tube |
| Temperature range |
Ambient +10 to 400∫C |
Ambient +10 to 400∫C |
| Stability (DIN 58966) |
0.5±∫C (up to 300∫C) |
0.5±∫C (up to 300∫C) |
| Uniformity |
±1% |
±1% |
| Display |
LED |
LED |
| Display resolution |
1∫C |
1∫C |
| Alarms |
High and low |
High and low |
| Heat up time (ambient +10 to 400∫C) |
1 hour 40 minutes |
1 hour 40 minutes |
| Timer |
1 to 9999 minutes |
1 to 9999 minutes |
| Safety |
Adjustable cut-out |
Adjustable cut-out |
| Electrical power where230V |
750W |
750W |
| Electrical power where120V |
750W |
750W |
| Supply voltage |
120 or 230V (50/60Hz) |
120 or 230V (50/60Hz) |
| Weight |
7.5kg |
7.5kg |
