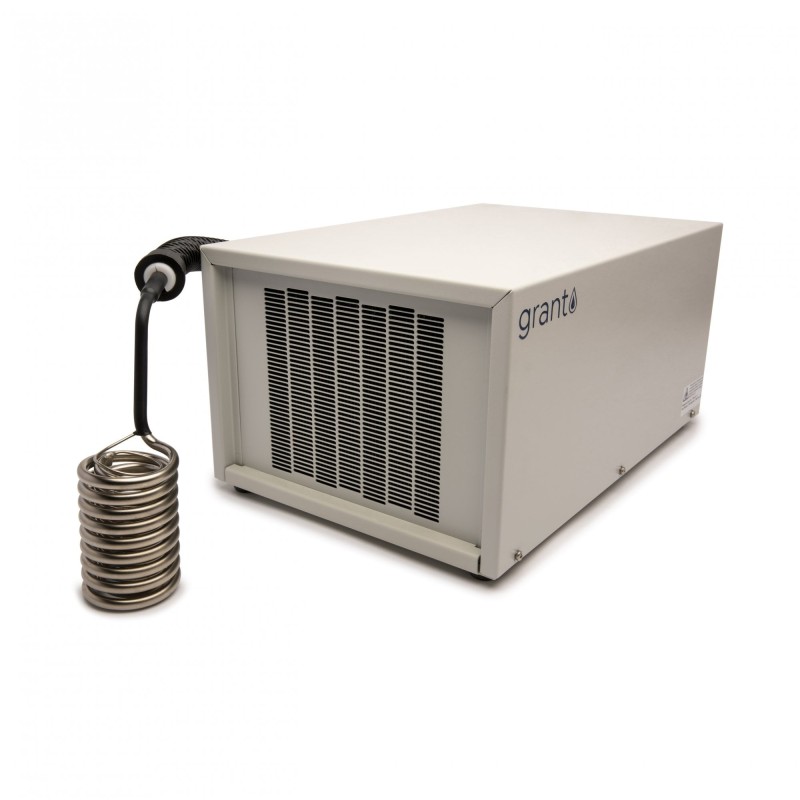

Grant Instruments refrigerated immersion coolers consist of a cooling coil connected to a refrigeration unit by a flexible pipe. Both units offer a continuous heat extraction, with the bath control unit controlling the temperature. Compatible with all four Optima thermostatic controllers: T100 TC120, TX150 TXF200.
The cooling coil can be continuously immersed in liquids up to 100℃ with the cooler switched off and may be used to cool down from 100℃ but it is not designed for continuous operation above 40℃.
Specifications
C1GR
C2GR
Cooling power @ 20℃
350W
450W
Cooling power @ 00℃
150W
350W
Cooling power @ -10℃
60W
200W
Overall consumption
300VA
500VA
Dimensions (d x w x h)
460mm x 305mm x 225mm
460mm x 305mm x 225mm
Weight
17kg
21kg
Flexible pipe
925mm
925mm
Coil √Éò/l
77/55mm
77/55mm
Electrical supply
120 (60 Hz) or 230 (50Hz)
120 (60 Hz) or 230 (50Hz)
GTR-C1GR
