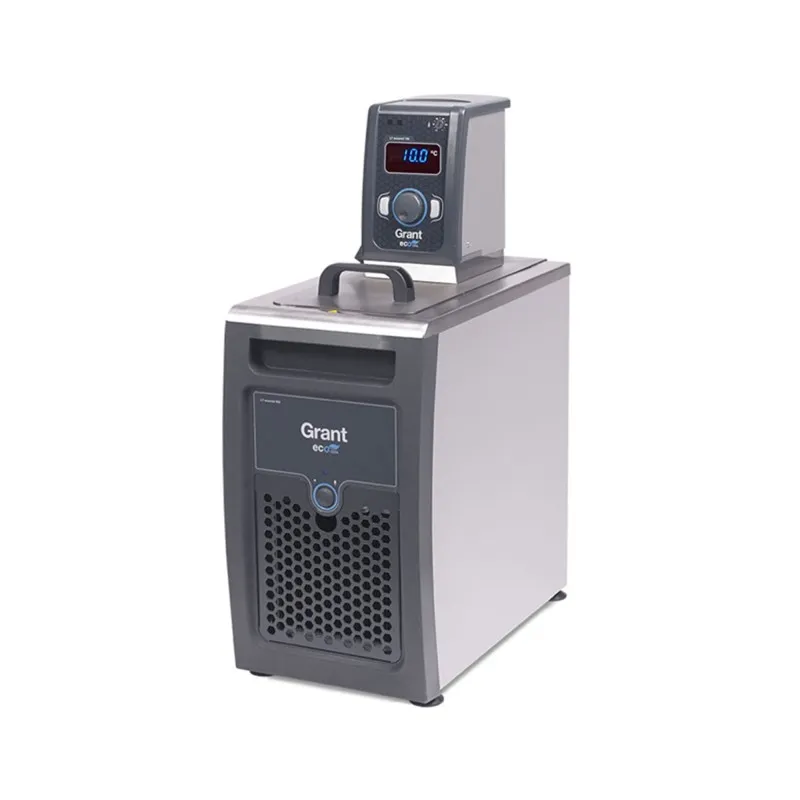

Grant Ecocool 100R bath is an innovative, eco-friendly, refrigerated heating circulating bath offering significant running cost savings whilst delivering powerful cooling. It is supplied as ready to use kits, complete with accessory hosing, connectors and clips as standard.
Benefits
Industry leading 4-year warranty
Active cooling through the whole temperature range
True energy saving of up to 80% against standard compressor units
Built in Britain to the highest specification
Thermostat and chiller work in harmony, neither will operate alone, eliminating any danger of overheating or freezing
Modern, attractive and sleek design
Single front switch for user convenience
Applications
Pharmaceutical mini pilot plant reactors
Education rotary evaporator cooling, replacement of running tap water cooling, immersing small samples, photometry, chromatography systems
Industrial QC testing, sample preparation, general cooling, reaction chemistry, temperature control, semi-conductor manufacturing, rheometry
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
Digital Water Circulator complete with 14 Litre Stainless Steel Tank and Shelf
Dimensions - External: 361w x 332d x 170h mm (Thermocirculator additional 120mm to bath height) / Internal: 219w x 298d x 150h mm
Water level: Maximum 130mm shelf fitted working depth 85mm
Nominal Tank Capacity: 14 Litres
Temperature Range: Ambient +5℃ - 99℃ Accessory DC1-300 provides cooling from ambient to -20℃
Temperature control: PID Digital, 4 digit LED display, resolution 0.1℃
Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
Sensitivity: ±0.05℃
Uniformity: ±0.01℃
Timer: Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message
Pump capacity and pressure: 10 litres/min - 150mbar Pressure drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump connection ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Digital Water Circulator complete with 22 Litre Stainless Steel Tank and Shelf
Dimensions - External: 537w x 332d x 170h mm / Internal: 395w x 298d x 150h mm
Water level: Maximum 130mm shelf fitted working depth 85mm
Nominal Tank Capacity: 22 Litres
Temperature Range: Ambient +5℃ - 99℃ Accessory DC1-300 provides cooling from ambient to -20℃
Temperature control: PID Digital, 4 digit LED display, resolution 0.1℃
Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
Sensitivity: ±0.05℃
Uniformity: ±0.01℃
Timer: Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message
Pump capacity and pressure: 10 litres/min - 150mbar Pressure drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump connection ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
