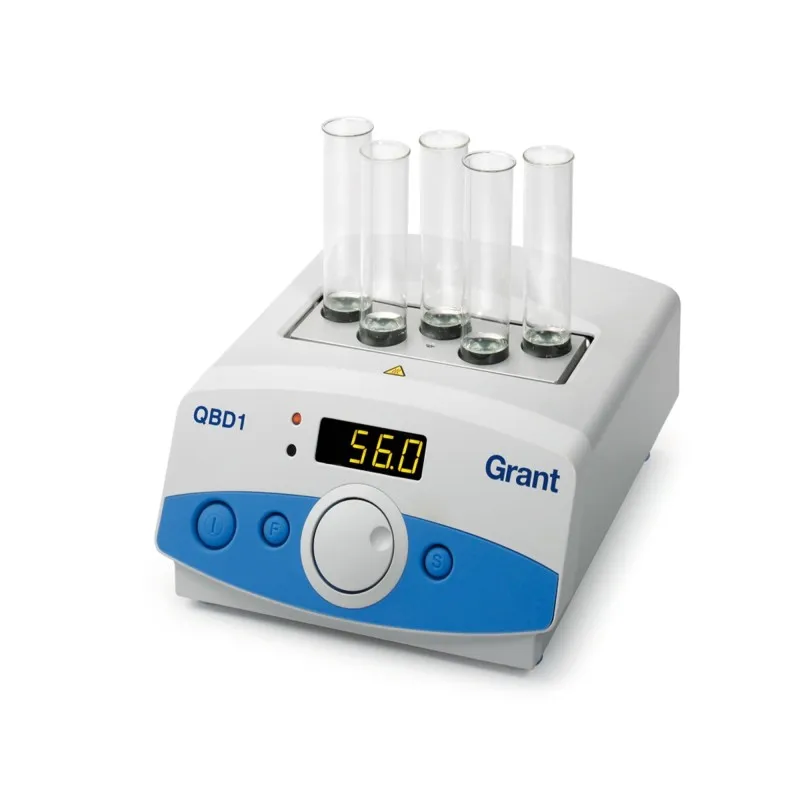

QBD Precisions Digital Dry Block Heating Systems - 1 Block
    QBD Precisions Digital Dry Block Heating Systems - 1 Block

Grant Instruments

QBD Precisions Digital Dry Block Heating Systems - 1 Block

ambient +5ºC to 130ºC
Quantity
Ask A Question

  • Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
  • Stability: ±0.1ºC
  • Uniformity: ±0.1ºC
  • Digital temperature control for optimal precision
  • Range of convenient features including alarms, single and dual point calibration, programmed start/stop, ‘offset' for known sample temperature variation and choice of external or internal probes
  • Includes block removal tool for easy and safe removal of blocks.
Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

Grant QBD Dry Block Heating Systems is a versatile general-purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.

Benefits

  • Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
  • Stability: ±0.1ºC
  • Uniformity: ±0.1ºC
  • Digital temperature control for optimal precision
  • Range of convenient features including alarms, single and dual point calibration, programmed start/stop, ‘offset' for known sample temperature variation and choice of external or internal probes
  • Includes block removal tool for easy and safe removal of blocks.

Applications

  • A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations.

Specifications

  • High power heater for fast heat-up – 25ºC to 100ºC in only 15 minutes.
  • Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up and use
  • Clear digital display – easy to read from a distance for instant reassurance
  • Convenient timer facility, with audible buzzer, for reaction timing and function timing, e.g. delayed heater switch-on/turn-off
  • Wide range of interchangeable blocks enables you to mix and match sample tubes as desired – extraction tool supplied as standard for easy and safe removal of blocks.
  • Overtemperature cut-out protects your samples and your workplace
  • High quality, robust construction in streamlined cool wall aluminium and chemical-resistant plastic – durable in demanding environments
  • Compact footprint to optimise use of benchspace
  • Options include blocks for 0.2 ml tubes, strips and 96-well microtitre plates used in molecular biology and biotechnology applications (QBD2 only)





QBD1

QBD2

QBD4
Dimensions (hxdxw) 120x240x200mm 120x285x200mm 120x390x200mm
Temperature range @37℃ Ambient +5 to 130℃ Ambient +5 to 130℃ Ambient +5 to 130℃
Stability @37℃ 0.1±ºC 0.1±ºC 0.1±ºC
Uniformity within the block @37℃ 0.1±ºC 0.1±ºC 0.1±ºC
Uniformity across similar blocks @37℃ 0.2±ºC 0.2±ºC 0.2±ºC
Temperature display • • •
Display resolution 0.1℃ 0.1℃ 0.1℃
Heat up time 25ºC to 100ºC 20 minutes 20 minutes 20 minutes
Three programmable temperature/ time segments plus end-of-program segments – – –
Reaction timer, with audible buzzer 1 to 999 minutes 1 to 999 minutes 1 to 999 minutes
Function timer for delay of heater start-up/switch-off Up to 72 hours Up to 72 hours Up to 72 hours
Off-set adjustment • • •
Two-point calibration of internal and external probes • • •
High/low temperature alarms, settable to within 0.5ºC of set temperature • • •
Fault indication display • • •
Extraction tool for easy and safe block removal • • •
Safety Thermal fuse Thermal fuse Thermal fuse
Heater power – 230V 150W 300W 600W
Heater power – 120V 100W 200W 400W
Supply voltage 120 or 230V 120 or 230V 120 or 230V
Weight 2.2kg 2.7kg 3.6kg



GRT-QBD1
