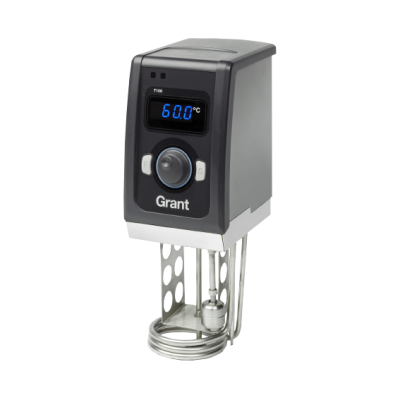

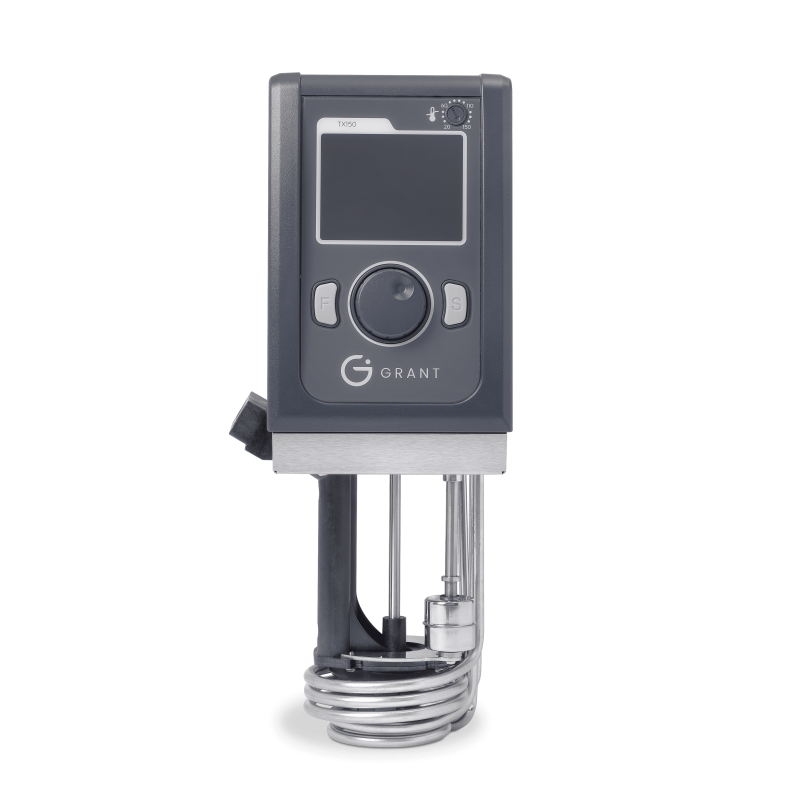

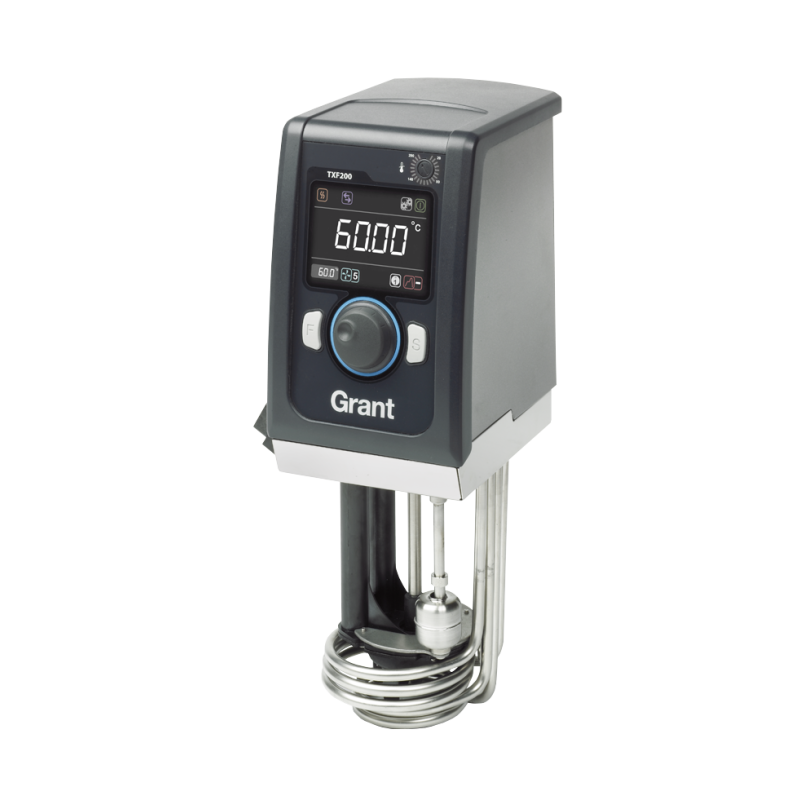

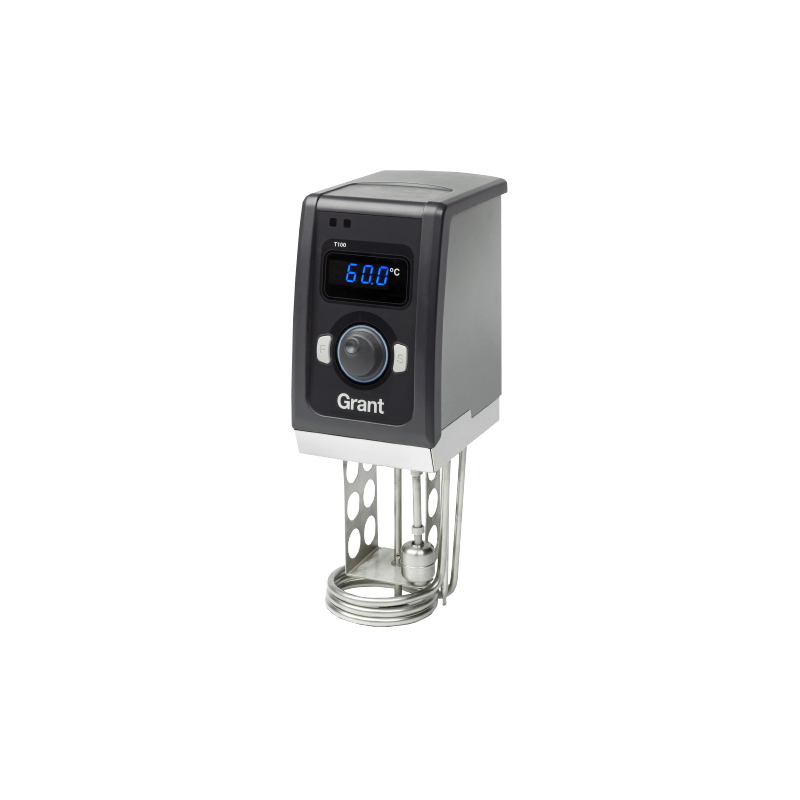

Grant Instruments Optima heating circulating range consists of 4 models - two general purposes: T100 and TC120 and two advanced models: TX150 and TXF200. Combine any of the four models with a Grant stainless steel or plastic tank or with a T-CLAMP to attach to virtually any vertical sided tank. A cost-effective range of multi-purpose systems combining Grants legendary quality and reliability.
Benefits
- Available cooling/heating range: 0℃ to 100℃, -25℃ to 120℃, -50℃ to 150℃ or -50℃ to 200℃ & multi-stage pump
- T-Clamp Included
- Icon driven home screen via dial and two function buttons
- Large, bright full-colour display
- USB/RS232 interface for programming or data logging
- External probe socket
- 5 point user calibration
- Multi-language options (EN,FR,DE,IT,ES)
- Communications interface
- Programmable: USB, RS232
- Safety - over temperature: 1
- Alarms (can be configured to switch a relay)
- NO BATH INCLUDED
Applications
Clinical, Microbiology and Pathology labs - media tempering, thawing & incubating samples
University research - temperature control of spectrophotometers & refractometers and jacketed vessels
Industrial labs - temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
| Specifications | T100 | TC120 |
|---|
| Dimensions (h x d x w) | 333mm x 172mm x 120mm | 333mm x 172mm x 141mm |
| Uniformity (DIN 12876) @70√¢à´C | ± 0.01℃ | ± 0.01℃ |
| Setting resolution | 0.1℃ | 0.1℃ |
| Display | 4 digit LED | 4 digit LED |
| Timer function | - | 1 minute to 99 hours 59 minutes |
| No. of temperature presets | 3 | 3 |
| Re-calibration points | 2 | 2 |
| Fluid level - float | Yes | Yes |
| Heater power - 230V | 1290W | 1290W |
| Heater power - 120V | 1440W | 1440W |
| Electrical power - 230V | 1400 (50-60Hz) | 1400 (50-60Hz) |
| Electrical power - 120V | 1500 (50-60Hz) | 1500 (50-60Hz) |
| Height above tank rim | 200mm | 20mm |
| Depth below tank rim | 135mm | 135mm |
| Maximum pressure (water) | - | 210mbar |
| Maximum flow (water) | - | 16L/min |
| Maximum flow (water) | - | Fits 9mm inner diameter tubing |
| Pump connector | - | Fits 15mm inner diameter tubing |
| Weight | 2.1kg | 2.3kg |
| Specifications | TX150 | TXF200 |
|---|
| Dimensions (h x d x w) | 342mm x 172mm x 141mm | 342mm x 172mm x 141mm |
| Uniformity (DIN 12876) @70℃ | ± 0.01℃ | ± 0.01℃ |
| Setting resolution | 0.1℃ (0.01 with Labwise®) | 0.1℃ (0.01 with Labwise®) |
| Display | Full-colour QVGA TFT | Full-colour QVGA TFT |
| Timer function | 1 minute to 99 hours 59 minutes | 1 minute to 99 hours 59 minutes |
| No. of temperature presets | 3 | 3 |
| Re-calibration points | 5 | 5 |
| Relays | 1 | 1 |
| Heater power - 230V | 1840W | 1840W |
| Heater power - 120V | 1445W | 1445W |
| Electrical power - 230V | 2000 (50-60Hz) | 2000 (50-60Hz) |
| Electrical power - 120V | 1500 (50-60Hz) | 1500 (50-60Hz) |
| Height above tank rim | 200mm | 200mm |
| Depth below tank rim | 145mm | 145mm |
| Maximum pressure (water) | 310mbar | 530mbar |
| MaxiMaximum flow (water) | 18L/min | 22L/min (adjustable flow rate) |
| Maximum flow (water) | Fits 9mm inner diameter tubing | Fits 9mm inner diameter tubing |
| Pump connector | Fits 15mm inner diameter tubing | Fits 15mm inner diameter tubing |
| Weight | 2.6kg | 2.6kg |
