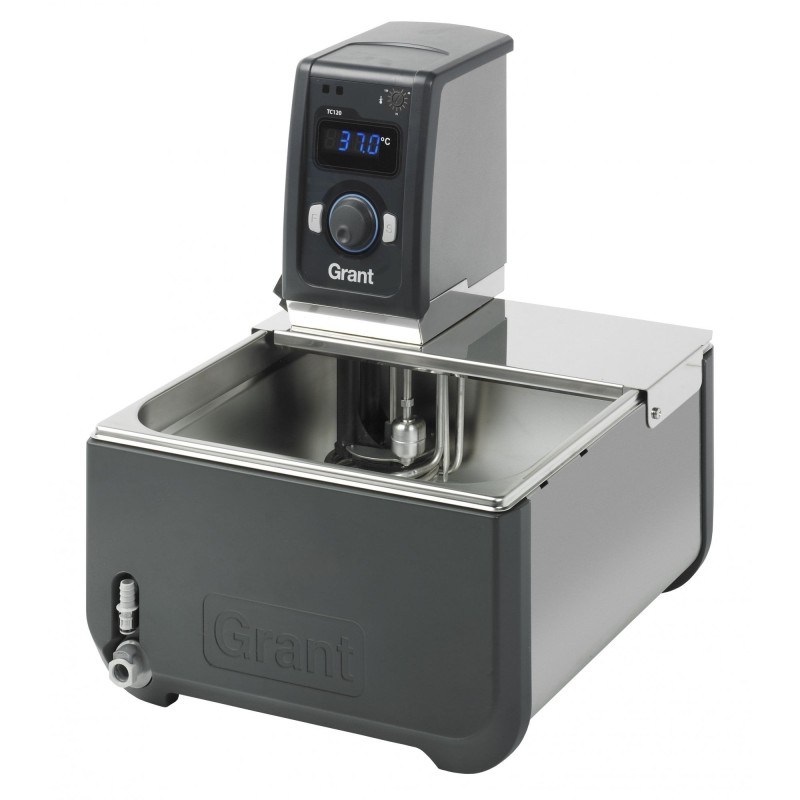

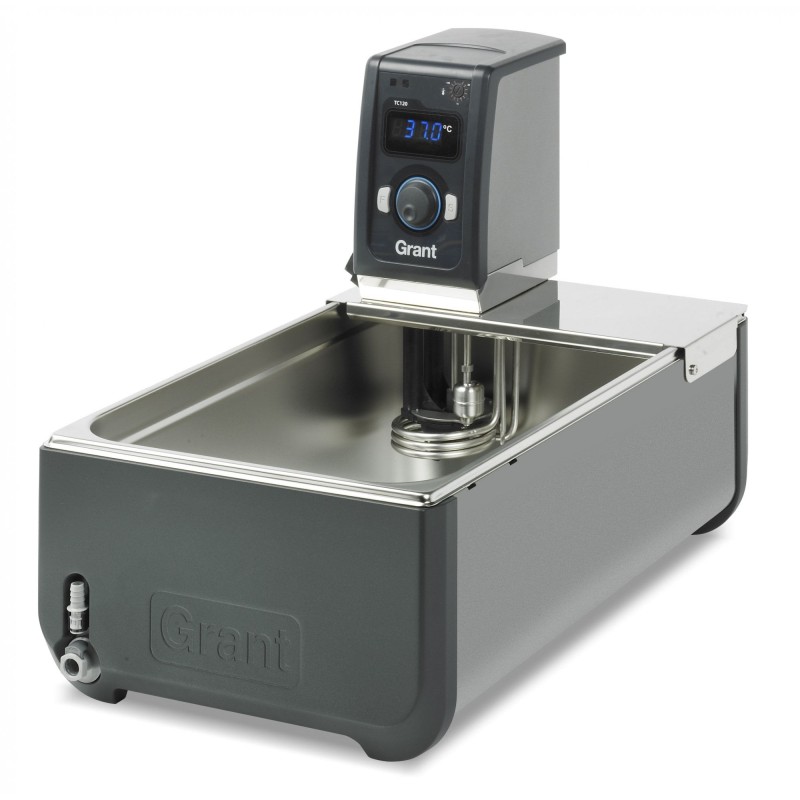

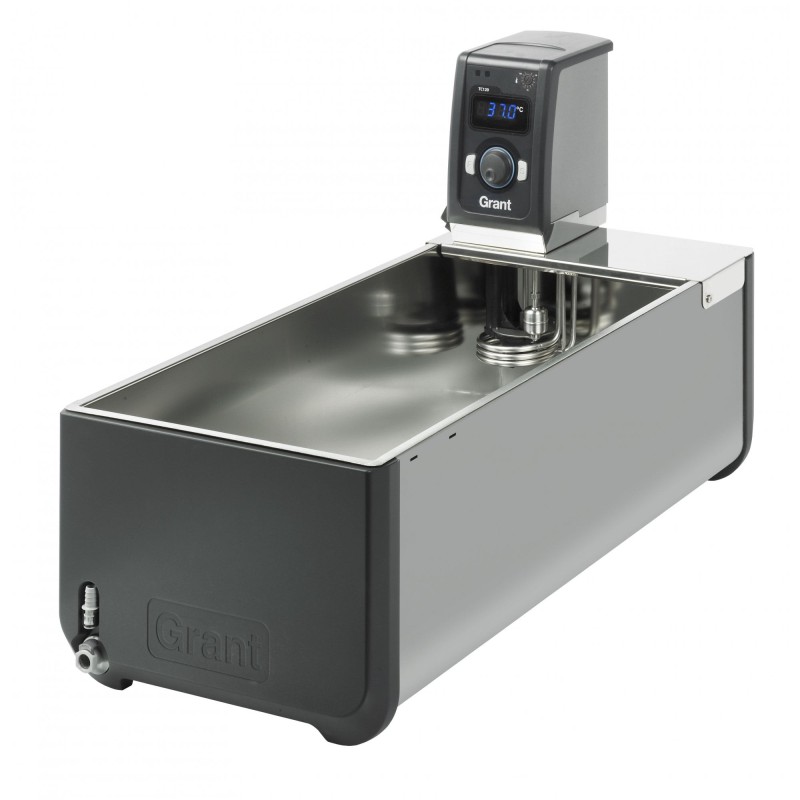

Grant Instruments TC120 series of digital heating circulating baths for general applications requiring precision temperature control in the range of -15℃ to 120℃. The TC120 heating circulator can be used in combination with any Grant stainless steel tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Benefits
Available capacities: 5 litres - 38 litres
Stainless Steel tank
Cooling/heating range +5℃ to 99℃
Stability ±0.05℃ / Uniformity ±0.1℃
Simple, intuitive user interface: dial and two function buttons
3 programmable temperature presets
Clear, bright 4 digital LED display
Low-level protection and adjustable over-temperature cut out
Countdown timer with an audible alarm
Applications
Clinical, Microbiology and Pathology labs media tempering, thawing and incubating samples
University research temperature control of spectrophotometers and refractometers and jacketed vessels
Industrial labs temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
Digital Water Circulator complete with 22 Litre Stainless Steel Tank and Shelf
Dimensions - External: 537w x 332d x 170h mm / Internal: 395w x 298d x 150h mm
Water level: Maximum 130mm shelf fitted working depth 85mm
Nominal Tank Capacity: 22 Litres
Temperature Range: Ambient +5℃ - 99℃ Accessory DC1-300 provides cooling from ambient to -20℃
Temperature control: PID Digital, 4 digit LED display, resolution 0.1℃
Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
Sensitivity: ±0.05℃
Uniformity: ±0.01℃
Timer: Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message
Pump capacity and pressure: 10 litres/min - 150mbar Pressure drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump connection ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Digital Water Circulator complete with 14 Litre Stainless Steel Tank and Shelf
Dimensions - External: 361w x 332d x 170h mm (Thermocirculator additional 120mm to bath height) / Internal: 219w x 298d x 150h mm
Water level: Maximum 130mm shelf fitted working depth 85mm
Nominal Tank Capacity: 14 Litres
Temperature Range: Ambient +5℃ - 99℃ Accessory DC1-300 provides cooling from ambient to -20℃
Temperature control: PID Digital, 4 digit LED display, resolution 0.1℃
Temperature alarm: Under/over temperature alarm is automatically set 4℃ above and 4℃ below set point
Sensitivity: ±0.05℃
Uniformity: ±0.01℃
Timer: Variable 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and end message
Pump capacity and pressure: 10 litres/min - 150mbar Pressure drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump connection ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
