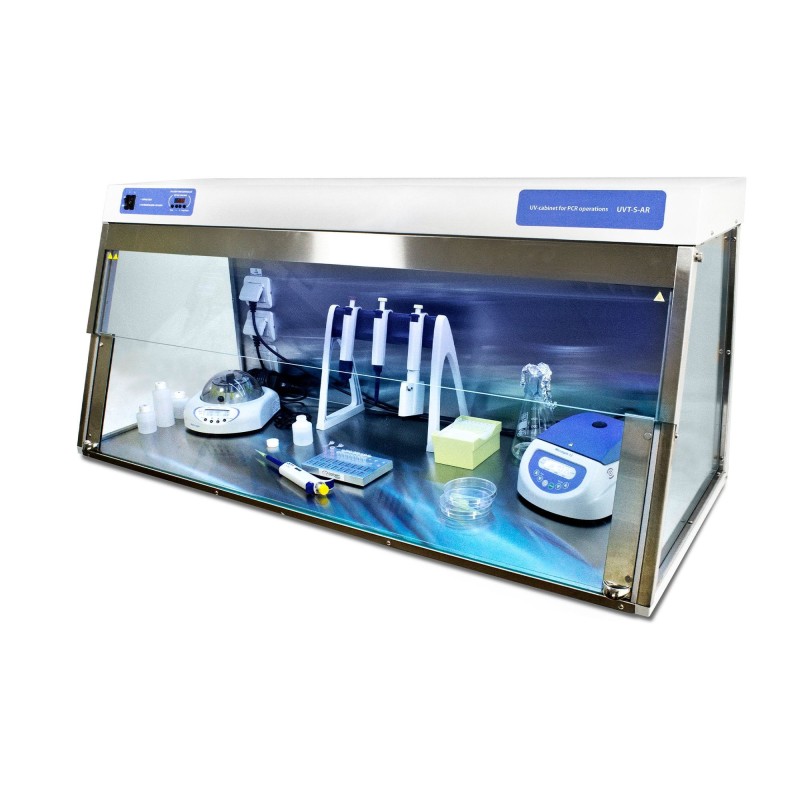

UVT-S-AR PCR Workstation

Grant Instruments

UVT-S-AR PCR Workstation

Quantity

  • Robust construction with large working area, 1.2m x 0.52m working area
  • UV surface irradiation – dual 30W 254 nm UV lamp
  • UV protection – UV-protective film on glass panels
  • UV exposure controlled by 24h digital timer
  • Convenient, easy to use digital timer for accurate control of UV exposure
  • Front opening with three adjustable positions for ease of access
  • White lamp provides local illumination of the workplace to optimise visual control during operations
  • Built-in UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange – prevents unwanted contamination and protects the user from direct UV light during manipulation
  • Automatic switch-off of irradiated UV light when door opened
  • Ample additional space for equipment and comfortable working
  • Supplied with 1 access port and 3 internal power sockets
Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

Grant Instruments UVT-S-AR is a large capacity stainless steel PCR UV cabinet workstation with additional space for equipment and accessories to allow for more comfortable and convenient working in PCR applications.

Benefits

  • Robust construction with large working area, 1.2mx0.52m working area
  • UV surface irradiation – dual 30W 254 nm UV lamp
  • UV protection – UV-protective film on glass panels
  • UV exposure controlled by 24h digital timer
  • Convenient, easy to use digital timer for accurate control of UV exposure
  • Front opening with three adjustable positions for ease of access
  • White lamp provides local illumination of the workplace to optimise visual control during operations
  • Built-in UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange – prevents unwanted contamination and protects the user from direct UV light during manipulation
  • Automatic switch-off of irradiated UV light when door opened
  • Ample additional space for equipment and comfortable working
  • Supplied with 1 access port and 3 internal power sockets

These UVT-S-AR cabinets are equipped with an open UV lamp installed in the upper part of the hood. UV-radiation from these lamps effectively disinfects the working area chamber, inactivating DNA / RNA fragments during 15-30 minutes of exposure. The digital timer controls the duration of the direct UV irradiation. An additional daylight lamp provides a bright, clear working area.

They are equipped with a high efficiency flow-type bactericidal UV cleaner-recirculator which provide constant decontamination inside the cabinet during operation. The UV cleaner-recirculator consists of UV lamp, dust filters and a fan. The recirculation effect increases the maximum density of the UV light making it sufficiently effective for DNA / RNA inactivation. The recirculator processes 360 UV-cabinet volumes per hour, creating permanently aseptic conditions within the cabinet.

Applications

These PCR UV-cabinets are designed for clean operations with DNA samples and provide protection against contamination. They are not recommended for operations with dangerous infectious and viral materials as well as DNA / RNA amplification.

Specifications

Dimensions (hxdxw) 585x585x1245mm
Construction Stainless steel frame and working area
Panels Glass with UV-protective film
Front opening with three adjustable positions
Open UV lamp, 25W bactericidal, 254nm, ozone free
Open UV lamp, 30W bactericidal, ozone free 2
Bactericidal air recirculator, 25m3/h air flow exchange
UV recirculator, 25W (efficiency >99% per 1 cycle)
UV recirculaor, 30W (efficiency >99% per 1 cycle) 1
White lamp for workplace illumination – 15W
White lamp for workplace illumination – 30W 1
Radiation type Ultraviolet (253.7m), ozone free
Optical transmission 95%
Digital timer (non stop) 0 to 24 hours
Internal power outlets 3
Internal working area 1210x500mm
Flow rate 70m3/h
Power consumption – 230V 530W (4.5A)
Power consumption – 120V 315W (1.4A)
Nominal operating voltage 120 (60Hz) or 230 (50Hz)
Weight 58kg
GRT-UVT-S-AR UK
