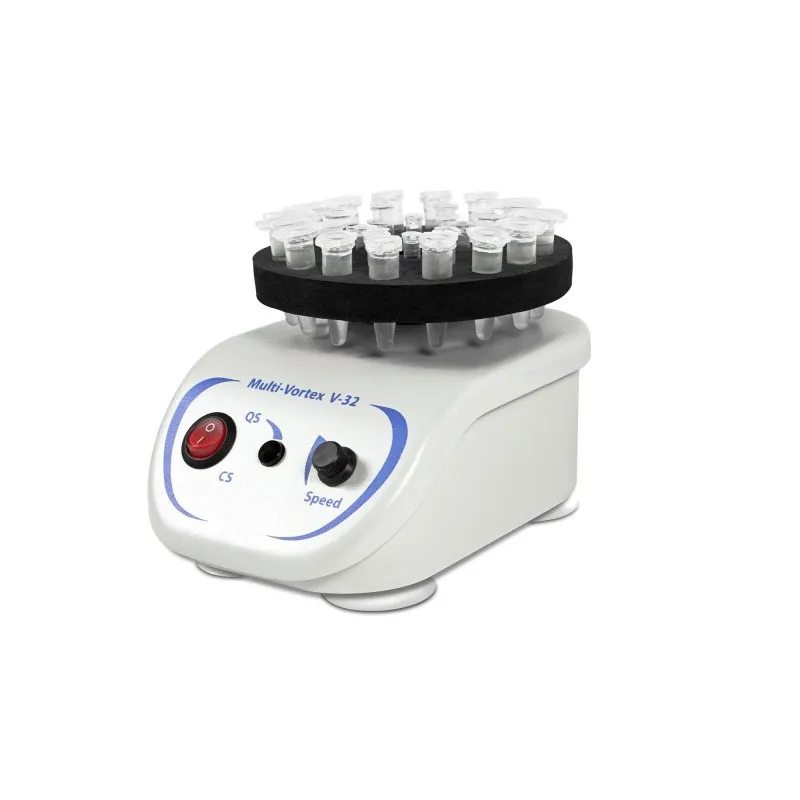

Grant bio V-32 is a versatile multi-vortex mixer for vigorous re-suspension of cells or chemical pellets in tubes up to 1.5 ml, with the facility to mix individual tubes up to 15 ml.
Benefits
Adjustable speed control: 500 to 3000 rpm
‘Continuous' or ‘impulse' operation
Handles up to 32 tubes in three different sizes/combinations
Additional VP-1 flat head for single tube mixing supplied with unit
Compact rugged design plus powerful motor delivering consistent performance and quiet operation – fits neatly and unobtrusively into the workspace
Rubber suction pads hold tight to the work surface and prevent the unit from ‘walking' – they also absorb vibration and prevent its transmission to the workbench
Extremely easy to operate – select either ‘continuous' or ‘touch' operation and turn the knob to adjust the speed from 500 rpm to 3000 rpm
The 32-socket universal platform for three tubes sizes (16x1.5ml, 8x0.5 ml, 8x0.2ml) and a tip for mixing individual tubes up to 15ml provide maximum flexibility for different applications.
Operating temperature range: + 4℃ to 40℃
Applications
Typical applications include intensive stirring of bacterial and yeast cells, extraction of metabolites and enzymes from cells and cell cultures, and various DNA operations such as deproteinisation of DNA/protein complexes and purification of low molecular weight DNA/RNA fragments in PCR diagnostics.
Specifications
Dimensions (hxdxw)
100x180x120mm
Ambient temperature range
+4 to 40ºC
Orbit ø
2
Speed
500 to 3000rpm
Capacity
16x1.5, 8x0.5 and 8x0.2ml tube
Maximum tube diameter
15mm
External power supply
Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption
3.8W (0.32A)
Input voltage
12V dc
Weight
1.5kg
GRT-V-32
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
Interchangeable platforms for use with a variety of vessels
Loads up to 3 kg
Continuous or timed operation with automatic switch-off
Reliable direct drive system
Automatic load balancing system
Soft start feature ensures a smooth ramp-up – avoids potential damage to vessel content
Exceptionally quiet motor – consistent even shaking
2-line LCD display clearly indicates both set and actual shaking speed, plus set and elapsed time. Works in combination with simple push buttons for easy set-up
Choice of 4 interchangeable platforms to suit different types of vessels – maximum flexibility
Low voltage power supply provides for safe cold room operation and low energy consumption
Ambient operating temperature range of 4 to 40ºC allows use in cold room or incubator
Integral electronic timer with audible alarm and automatic switch-off – accurate repeatability of time-sensitive incubations
Industry Leading Thermal Shaker with Exceptional Heating/Cooling Performance with High Speed Shaking
Best in class for temperature performance.
Enhanced electronics and software allow for fast and accurate temperature control you can trust. Cooling models reach temperatures down to 17°C below ambient.
Intuitive touchscreen for simple operation and programming. Set the functions and the comprehensive help screens in one of six languages to guide the user through the operation of the unit.
Easily create programs for repeat applications. Storage for five separate, 5-step programs. The USB port allows the transfer of test data to a flash drive for data logging and program storage.
Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function DNA, RNA, Cell Cultures, Hybridisations, Protein Studies
4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Detachable 3-wire cord and plug (included), unit requires a block - compatible with Eppendorf Thermomixer® R blocks
USB port provides greater flexibility in data collection and transfer
Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Construction: Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Applications: Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
Stirring Speed Range: 6-400 rpm (I), 30-2000 rpm (II)
Stirring Volume (H2O): up to 100l
Maximum Viscosity (cP or mPa's): 100 000
Maximum Torque (Ncm): 200
Application: Stirring, dissolving, dispersion, emulsification and homogenisation in the food and beverage, cosmetic, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction industries. Used for pilot scale in manufacturing.
Construction: Sealed aluminium housing with IP54 ingress protection rating, Keyless Chuck for simple, one-hand operation, brushless motor for quiet operation, and main power switch
Display: Bright LED digital display for speed, real time torque tendency LED indicator bar, and integrated timer
Application: Stirring, dissolving, dispersion, emulsification and homogenisation in the food and beverage, cosmetic, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction industries. Used for pilot scale in manufacturing.
Construction: Sealed aluminium housing with IP54 ingress protection rating, Keyless Chuck for simple, one-hand operation, brushless motor for quiet operation, and main power switch
Display: Bright LED digital display for speed, real time torque tendency LED indicator bar, and integrated timer
