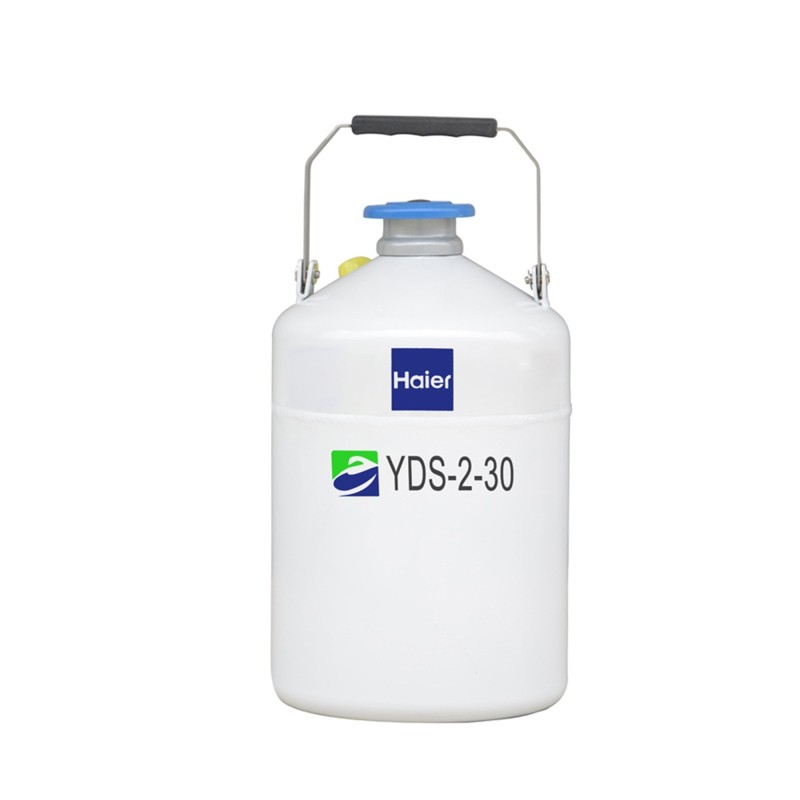

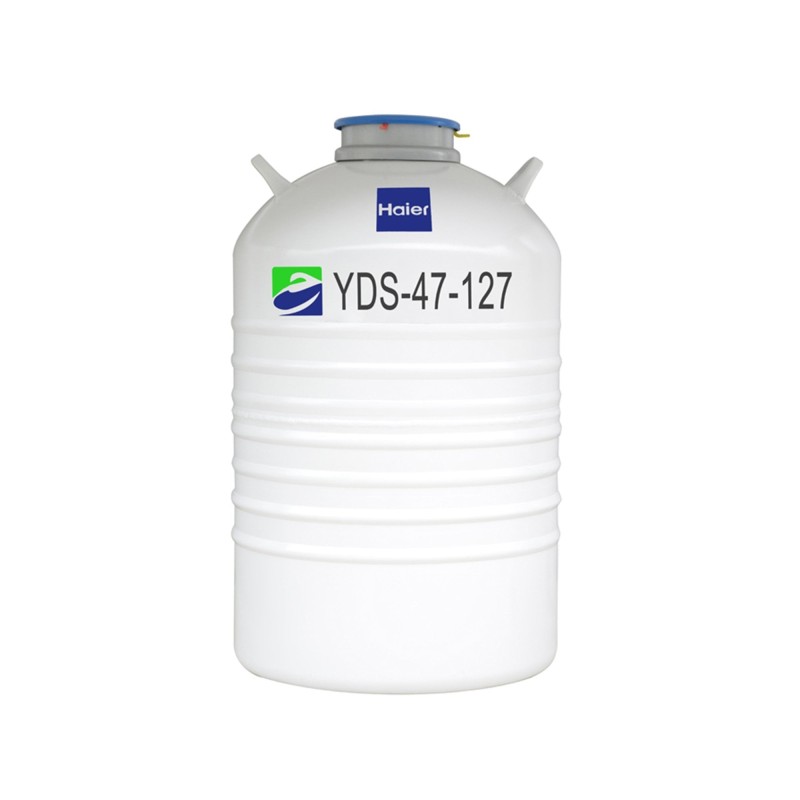

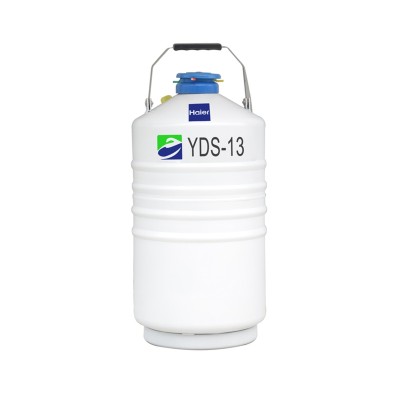

Haier Biomedical Liquid Nitrogen Dewars for Storage and Transportation provides two cryopreservation solutions for long-term static storing and transporting of biological samples. It features an advanced vacuum and super-insulation technology that ensures low evaporation rates and long holding times, up to 120 days. Maintains ultra-low temperatures for long periods even in the vapour phase.
Benefits
- Numbered Index Canister Locations
- Strong and lightweight aluminium construction
- High Capacity
- High Thermal Efficiency
- 5 Year Vacuum Warranty
- Extended Hold Time
- LN2 dispense available
- Straw storage
- High thermal efficiency
- Ultra-low evaporative losses
- Numbered index location points for canisters
- Roller bases available
- 10 models, capacities 1 to 50 litres
Product advantages
- Narrow neck design
- Excellent thermal conductivity
- Large-capacity models have wider necks for easier access to biological samples
- Heavy-duty lockable enclosure offers excellent security
The standard storage system is compatible with all major cryobox brands and has an option for storing blood bags. User can store in liquid or vapour phase. Lightweight and durable aluminium construction with heavy-duty lockable, enclosures offering excellent security.
| Specification |
YDH-2-35 |
YDH-3 |
YDH-6 |
YDH-10-125 |
YDH-13 |
| No. of Canister |
3 |
6 |
6 |
1 |
6 |
| Number of straws(single layer) (0.5ml each holder) |
90 |
792 |
792 |
- |
- |
| Number of straws(single layer) (0.25ml each holder) |
204 |
1788 |
1788 |
- |
- |
| Number of straws(double layer) (0.5ml each holder) |
- |
- |
- |
1508 |
1284 |
| Number of straws(double layer) (0.25ml each holder) |
- |
- |
- |
3324 |
2832 |
| Volume of LN2(L) |
2 |
3.15 |
6 |
10 |
13 |
| Static Evaporation*(L/day) |
0.06 |
0.10 |
0.10 |
0.30 |
0.10 |
| Duration of Normal Operation* * (Day) |
21 |
20 |
38 |
21 |
2 |
| Opening Diameter(mm) |
35 |
50 |
50 |
125 |
50 |
| Height(mm) |
378 |
429 |
476 |
546 |
610 |
| Outer Diameter(mm) |
224 |
224 |
300 |
300 |
310 |
| Canister Outside Diameter(mm) |
19 |
38 |
38 |
97 |
38 |
| Outside Height(mm) |
120 |
120 |
120 |
276 |
276 |
| Empty Weight(KG) |
2.9 |
3.5 |
5 |
6.9 |
6.6 |
| Gross Weight(KG) |
4.5 |
6 |
9.9 |
15.1 |
17.3 |
| Specification |
YDH-15-125 |
YDH-20 |
YDH-30-125 |
YDH-35-125 |
YDH-47-127 |
| No. of Canister |
1 |
6 |
6 |
6 |
6 |
| Number of straws(single layer) (0.5ml each holder) |
- |
792 |
5124 |
5124 |
5124 |
| Number of straws(single layer) (0.25ml each holder) |
- |
1788 |
11952 |
11952 |
11952 |
| Number of straws(double layer) (0.5ml each holder) |
1508 |
1284 |
9048 |
9048 |
9048 |
| Number of straws(double layer) (0.25ml each holder) |
3324
|
2832 |
19944 |
19944 |
19944 |
| Volume of LN2(L) |
15 |
20 |
30 |
35 |
47 |
| Static Evaporation*(L/day) |
0.30 |
0.10 |
0.28 |
0.29 |
0.33 |
| Duration of Normal Operation* * (Day) |
31 |
126 |
67 |
76 |
90 |
| Opening Diameter(mm) |
125 |
50 |
125 |
125 |
127 |
| Height(mm) |
585 |
656 |
659 |
700 |
754 |
| Outer Diameter(mm) |
394 |
394 |
461 |
461 |
461 |
| Canister Outside Diameter(mm) |
97 |
38 |
97 |
97 |
97 |
| Outside Height(mm) |
276 |
120/276 |
120/276 |
120/276 |
120/276 |
| Empty Weight(KG) |
10.2 |
11.7 |
14.3 |
14.5 |
15.4 |
| Gross Weight(KG) |
22.5 |
28.1 |
38.9 |
43.2 |
54 |
