Haier Biomedical

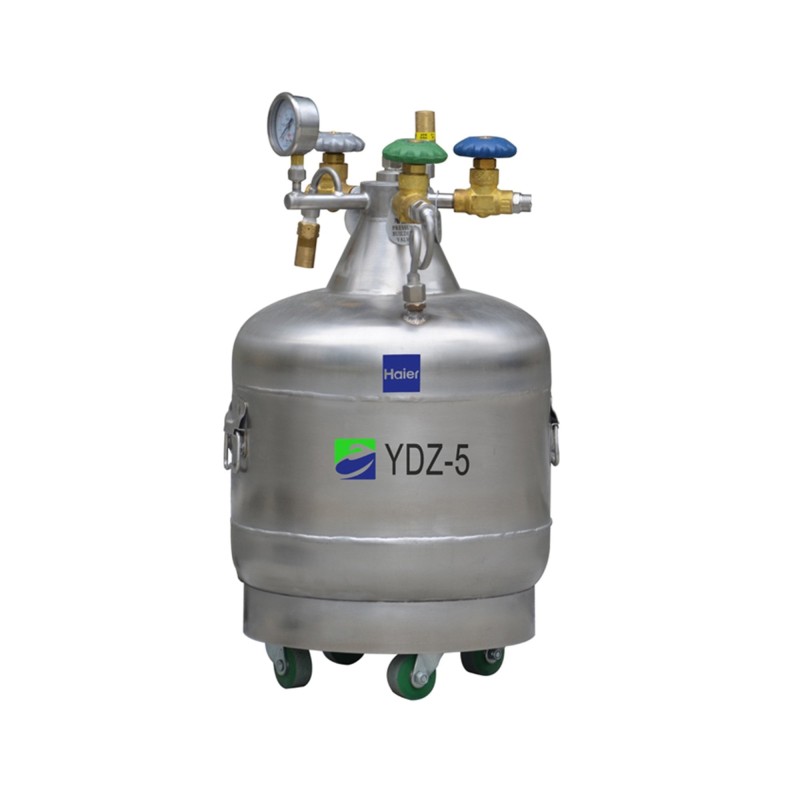

Self-Pressurised Liquid Nitrogen Storage Vessels
LN2 Capacity :
5 L
- 5 Year vacuum warranty
- Stainless steel structure
- Decant valves
- Liquid storage
- Muffler
- Pressure raising
- Relief valve
- Rotary ring construction
- Labelled valves for easy identification
- Ten models with capacities ranging from 5 to 500 litres
100% Secure Shopping
100% Secure Shopping & Payment Gateway
Express Delivery
We aim to ship all orders within 1-3 working days.
Hassle Free Returns
Not 100% happy with your order? find out more about our returns policy.
Haier Biomedical Self-Pressurised Liquid Nitrogen Storage Vessels is the latest innovation for high-performance liquid phase cryopreservation. These vessels use the pressure generated from the vaporisation of a small amount of liquid nitrogen to discharge LN2 for other containers. It features a rotary ring stainless steel construction that ensures the system can withstand the most demanding environment. It provides a reduced evaporation loss rate, compared with conventional welding insulation tanks.
Benefits
- 5 Year vacuum warranty
- Stainless steel structure
- Decant valves
- Liquid storage
- Muffler
- Pressure raising
- Relief valve
- Rotary ring construction
- Labelled valves for easy identification
- Ten models with capacities ranging from 5 to 500 litres
Product Advantages
- All models have four casters for better mobility
- Accessories included: a pressure valve, a drain valve, a relief valve, and a pressure gauge
- Extra accessories included for 200 L and above models: rupture discs and silencers
- Self-pressurised LN2 Backup System
In cases of cryofreezer failures (mechanical or power outage), the back-up system automatically injects LN2 into the freezer to maintain temperature and protect samples. The container uses the pressure generated from the vaporisation of a small amount of liquid nitrogen to discharge LN22 for other containers.
Specification | YDZ-5 | YDZ-15 | YDZ-30 | YDZ-50 | YDZ-100 |
---|---|---|---|---|---|
Volume of LN2 (L) | 5 | 15 | 30 | 50 | 100 |
Static Evaporation* (L/Day) | 0.15 | 0.38 | 0.75 | 1 | 1.3 |
LN2 output (L/Min) | 2 | 2 | 3 | 3 | 4 |
Height(MM) | 510 | 750 | 879 | 991 | 1185 |
Outside Diameter(MM) | 329 | 404 | 454 | 506 | 606 |
Empty Weight(KG) | 15 | 23 | 32 | 54 | 75 |
Gross Weight(KG) | 19.1 | 35.3 | 56.6 | 95 | 157 |
Pressure Parameters (MPA): 1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0~0.25
Specification | YDZ-150 | YDZ-175 | YDZ-200 | YDZ-240 | YDZ-300 | YDZ-500 |
---|---|---|---|---|---|---|
Volume of LN2 (L) | 150 | 175 | 200 | 240 | 300 | 500 |
Static Evaporation* (L/Day) | 1.95 | 2.1 | 2.4 | 2.9 | 3.3 | 5.5 |
LN2 output (L/Min) | 6 | 6 | 8 | 8 | 8 | 10 |
Height(MM) | 1188 | 1298 | 1265 | 1350 | 1459 | 1576 |
Outside Diameter(MM) | 706 | 706 | 758 | 758 | 857 | 1008 |
Empty Weight(KG) | 102 | 120 | 130 | 148 | 202 | 255 |
Gross Weight(KG) | 225 | 264 | 294 | 366 | 448 | 665 |
Pressure Parameters (MPA): 1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0-0.25, 6. Rupture disc burst pressure 0.47.
