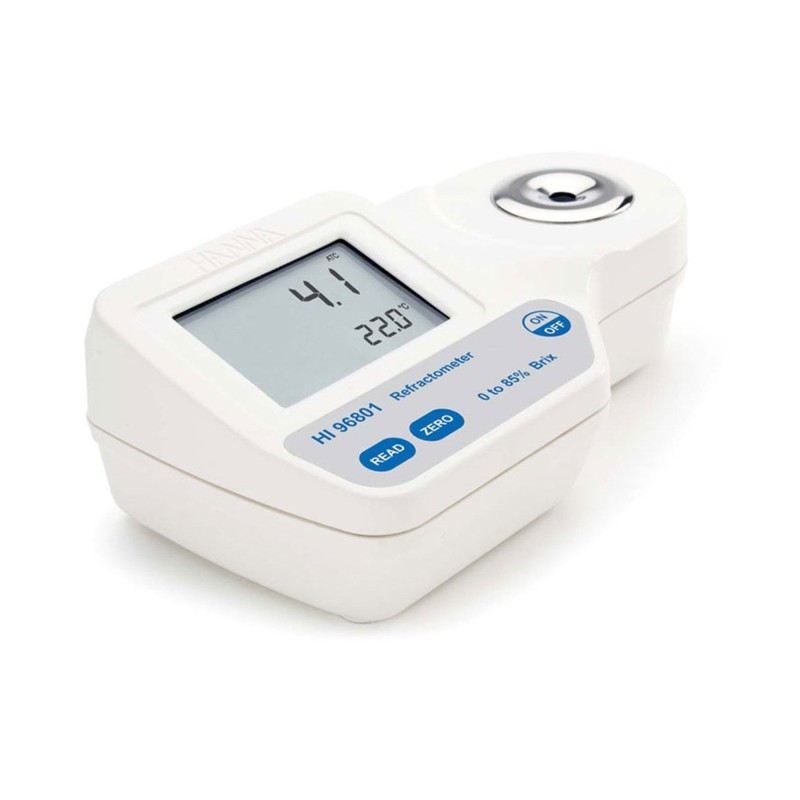

Hanna Instruments HI-96801 is a portable refractive Index and Brix refractometer designed for use in the food industry. To determine the % Brix of sugar in aqueous solutions, the HI-96801 measures the refractive index. The HI-96801 offers all the benefits of a digital meter but only costs a little more than a mechanical model. Ideal for measuring the concentrations of general-purpose sugars in fruit, energy drinks, puddings, jams, honey, sauces, tofu and soups. The HI-96801 is used by fruit growers and importers, fruit juice & drink manufacturers, and productions of jams, preserves & sauces. This is one of five sugar refractometers Hanna offers to meet the requirements of the food industry. The HI-96801 is rugged and water-resistant for measurements in the lab or field.
Features
- 1.5 second measurement time
- Direct readout in % Brix and ℃
- Automatic temperature compensation
- No calibration solutions required
- Large clear LCD display
| Model | HI-96801 |
| Range |
0 to 85% Brix / 0 to 80℃ |
| Resolution |
± 0.1% Brix / ±0.1℃ |
| Accuracy |
± 0.2 % Brix / ± 0.3℃ |
| Automatic Temperature Compensation |
between 10 and 40℃ |
| Measurement Time |
Approximately 1.5 seconds |
| Minimum Sample Volume |
2 metric drops |
| Light Source |
Yellow LED |
| Sample Cell |
Stainless steel ring and flint glass prism |
| Auto-off |
After 3 minutes of non-use |
| Case material |
ABS |
| Enclosure Rating |
IP 65 |
| Battery Type / Battery Life |
(1)9V / Approx 5000 readings |
| Dimensions |
192 x 102 x 67 mm (7.6 x 4 x 2.6”) |
| Weight |
420 g |
