Inspection Equipment

• Simple and intuitive operation
• Maximum detection sensitivity for product and machine safety
• Outstanding dectection performance for raw materials e.g. veg, nuts, dried fruit or cereals

• Integrated network compatibility - remote access for quick error diagnosis and support
• Easy setup or adjusted by line operators - no special training/ previous X-ray knowledge/no engineer required
• Intuitive operator control through an icon-based user interface

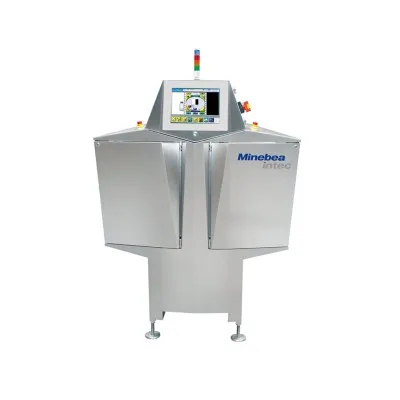

• Dual beam ensures small foreign bodies near the glass are detected
• Reliable detection of a thin glass silver
• Prevents blind areas when inspecting jars

• Integrated network compatibility - remote access for quick error diagnosis and support
• Easy setup or adjusted by line operators - no special training/ previous X-ray knowledge/no engineer required
• Intuitive operator control through an icon-based user interface

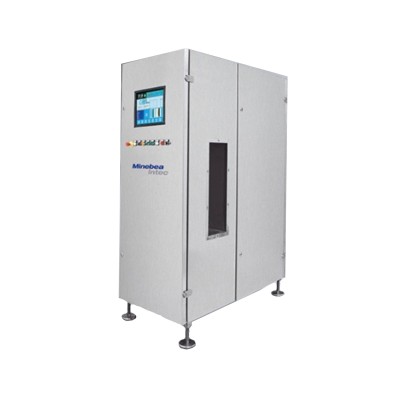

• Dual beam ensures small foreign bodies near the glass are detected
• Reliable detection of a thin glass silver
• Prevents blind areas when inspecting jars

• Integrated network compatibility - remote access for quick error diagnosis and support
• Easy set up or adjusted by line operators - no special training/ previous X-ray knowledge/no engineer required
• Intuitive operator control through an icon based user interface

• Easy installation and integration of networks
• Maximum product safety thanks to the highest degree of detection sensitivity
• Intuitive, time-saving operation
• Complete with separator and run-off container

• 15" color touchscreen display
• Combining high detection sensitivity with low power consumption
• Covering belt widths from 200 mm up to 800 mm
• checks completeness
• determines product mass and compartment mass
• Easy inspection and cleaning
• Time and cost saving
• Hygienic design - following EHEDG principles featuring curved edges and sloped surfaces

Minebea-Intec Dyxim FB series can simultaneously perform in-line quality checks, including counting components, measuring mass and identifying damaged or missing products. The Dyxim FB series inspects large products such as boxes and sacks up to a size of 700mm x 360mm containing dry or liquid food products. If you need to increase product size and material density, the Dyxim FB series' high energy systems are required to ensure a reliable detection of foreign bodies.

• Available standard coil sizes: 75 x 30 mm up to 275 x 60 mm
• Standard IP65 protection class, IP69K optionally available for enabling high-pressure water cleaning
• Fast and easy switching between product batches via extensive product memory
• Easy integration into data networks (wide variety of available interfaces)
• Free maintenance three-phase motor with worm gear or a three-phase drum motor
• Control unit fully integrated into the detection coil leaving an extremely compact machine
• Access protection - user individual passwords or fingerprint authentication (avoiding unauthorized system changes)

• Maximum detection sensitivity ensuring a reliable detection
• Multi-frequency technology
• Up to four search coils via one terminal - cost effective
• Efficient separation systems
• Only to be used in zone 22 - potential explosive environments as per the provisions of Directive 94/ 9/ EC
• Minimal installation height - easy integration into any application
• Food standard certified quality pipes

• Display scale divisions 0.1 g to 1g
• Weighing systems: 1.0 kg, 2.0 kg, 5.0 kg or 7.0 kg
• 3 display and control units: 6.4" TFT, 10.4" TFT or 15" TFT with touchscreen
• Aperture width of the coils for metal detection: 225, 275 or 375 mm
• Aperture height of the coil for metal detection: working height 110 max.
• Max. throughput 200pcs/min
