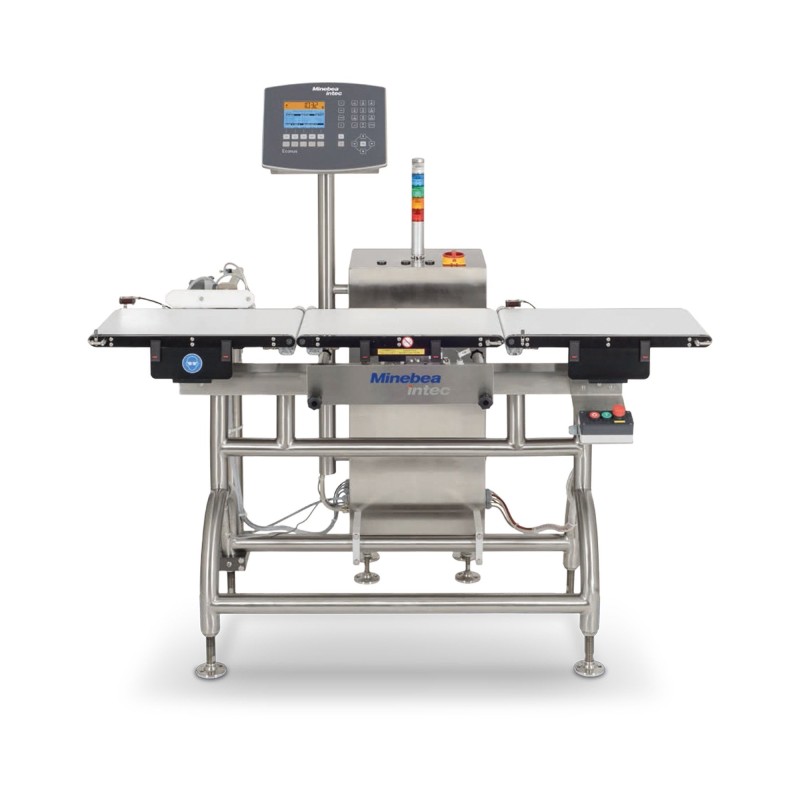

Minebea-Intec Checkweigher Econus is the ideal economic solution for non-approved weighing applications, completeness checks and for optimizing filling processes. It also offers extreme operator friendliness and through its open tubular construction, easy inspection, and cleaning. This unit is reliable, user-friendly and user-defined with its user-dependent dialogue language.
Benefits
Maximum throughput of 120 pcs. per minute
IP54 protection class, IP65 available as an option
Weight: approx. 120 kg (depending on configuration)
Password protection for secure processes
Program-controlled belt speed for optimal weighing
Easy to clean its stainless steel design
Easy to operate belt tensioning mechanism
IP65 protection class
Easy integration into your product line (without needing an engineer)
Having the USB print function allows you to save your extremely accurate product data to a USB stick. Econus also has a trend controller built-in with digital outputs for optimizing the filling process.
Technical Data
600 g
1200 g
3000 g
6000 g
Weighing range (g)
Up to 600
Up to 1,200
Up to 3,000
Up to 6,000
Resolution (g)
0.1
0.2
0.5
1
Standard throughput (pcs/min)
Up to 120
Up to 100
Up to 80
Up to 80
Speed ranges (m/s)
0.2 - 1.0
0.2 - 1.0
0.2 - 1.0
0.2 - 1.0
Working height
600 mm - 1,000 mm
600 mm - 1,000 mm
600 mm - 1,000 mm
600 mm - 1,000 mm
Protection Rating
IP 54 (standard), IP65 (optional)
IP 54 (standard), IP65 (optional)
IP 54 (standard), IP65 (optional)
IP 54 (standard), IP65 (optional)
MINEA-ECONUS
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
