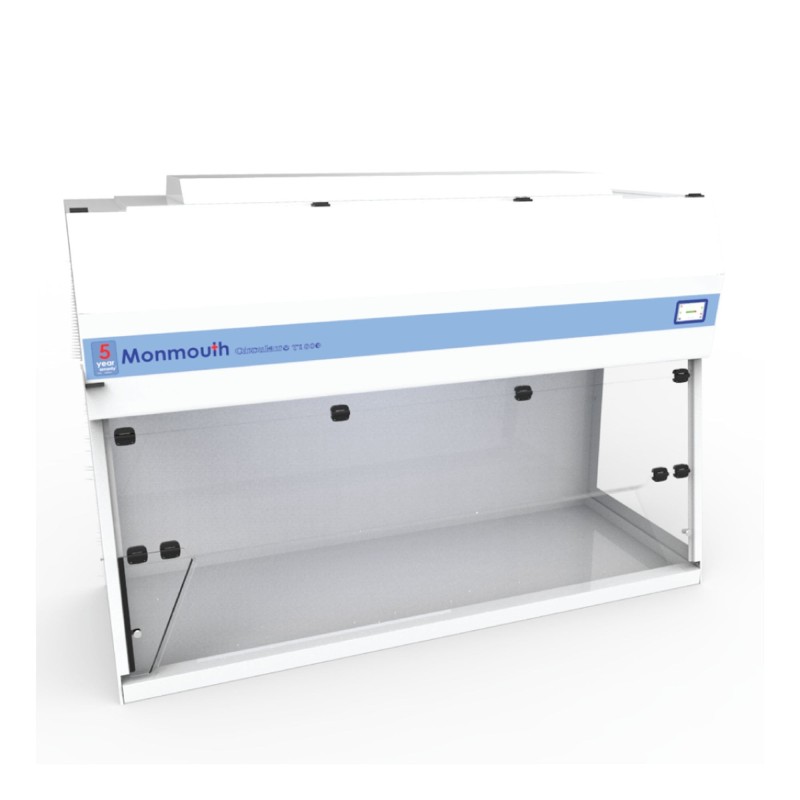

Monmouth Scientific Circulaire® Filtration Fume Cupboard solutions feature the very latest in recirculating air filtration technology, utilising Ultra-deep Activated Carbon filters.
Using the filters guarantees maximum fume filtration efficiency and or HEPA filters for particulate removal. Monmouth filters are 30% larger than rival cabinets and significantly deeper, which results in fume removal and air purification more efficient, effective and safe.
All Monmouth Scientific Filtration Fume Cupboards are covered by their superb industry-leading 5-year warranty.
Benefits
- Aperture: 1500mm x 300mm*
- Automatic Airflow Compensation: Fan speed adjusts in accordance with aperture size to ensure user protection
- PIR Sensors: PIR Movement Sensors detect periods of inactivity and employ ECO-Mode.
- Ultra Deep Carbon Filters: The deepest filters available on the market increase contaminant dwell time to 0.3 seconds.
- Visionaire® Touchscreen: Control & monitor all aspects of a product operation from the user-friendly Colour Interface.
- LED Lighting: LED Lighting improves visibility and energy efficiency. Large Aperture: The Large Working Aperture allows for easy work area access.
During manufacture all aspects of the fume cabinet, from the electronics through to the metalwork, are meticulously checked and monitored to ensure optimal operation, safety and compliance with COSHH regulations and international standards, including BS7989:2001 (Filtration Fume/Particulate cupboards). The units also use an average of just 100 watts of power, ensuring extremely low energy costs.
The range is available in a wide selection of standard sizes, with filters to suit all applications. In order to be able to achieve this level of quality, the systems are designed and manufactured by Monmouth Scientific in the UK by their experienced team of engineers. In addition to standard units, they also offer bespoke systems to your unique requirements.
Technical Data
ModelCT1800
| External dims (WxDxH) |
1800mm x 700mm x 1284mm |
| Aperture (WxH)* |
1500mm x 300mm* |
| Face Velocity |
Typically set at 0.55m/sec Can be adjusted depending upon application |
| Noise level |
Circa. 55db(A) |
| Main filters |
Large Capacity CARBON or HEPA |
| Outlet filter |
Large Capacity CARBON or HEPA (Optional) |
| Power |
160 watts |
*Aperture widths are average measurements
Monmouth Scientific are able to supply a variety of Carbon Filters that are suitable for almost every application. Please see below for the most common Carbon Filters and their intended application.
For multiple applications, a blend up to four carbon types together in a special filter Type MCH. Other applications can be accommodated. Please contact us for more information. Where extra safety is required, an optional outlet filter can be specified. This should be of the same type as the main filter with the exception of the outlet HEPA filter, which can be specified for particulate removal with ANY of the carbon filter types.
Carbon Codes, suitable for the removal of:
- AC: General Organic Compounds (iodine, solvents, odours etc)
- ACID: Acidic Compounds (and general organics)
- ACR: Alkali Compounds (and general organics)
- AMM: Ammonia & Amine Compounds (and general organics)
- CYN: Cyanide Compounds (and general organics)
- ETHER: Ether Compounds (and general organics)
- FORM: Aldehydes (and general organics)
- SUL: Sulphur Compounds (and general organics)
- MCH: Special blend of up to 4 of the above carbon types
- ED: Tri-Layered Filter for schools (organic, acid & alkali removed)
