Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.

The SLS Lab Basics Max III Trinocular Compound Microscope (4x, 10x, 40x, 100x Infinity Corrected Plan Achromatic) is professionally designed for laboratory applications in teaching laboratories, offering precise high-quality images with its fully-coated optical system. This microscope comes with an inclined 30 and 360 rotatable trinocular head and a built-in mechanical stage. Four high clarity Infinity Corrected Plan Achromatic objectives are supplied as standard.

• Integral carrying handle allows for one handed transportation of the microscope
• Precondenser: fixed lens, which is removable to accept a mirror (for locations without power) and to allow for lamp replacement
• All objectives are colour coded to ease identification when in use
• Reversed nosepiece and full mechanical stage: quadruple reversed, so providing easy uninterrupted access to the stage when changing over slides, has full X/Y movement and spring loaded slide holder
• Optical head: trinocular with photo port inclined at 30, interpupillary distance adjustment (Siedentopf type): 47 to 78mm, dioptric adjustment on one eyepiece
• Eyepieces: 10x/18mm wide-field (pointer in one eyepiece)
• Nosepiece: quadruple reversed, revolving with click stop
• Objectives: 4x, 10x, 40x, 100x infinity corrected plan achromatic
• Condenser: brightfield Abbe NA 1.25 - precentred, focusable, iris diaphragm and filter holder
• Stage: 160 x 140mm with built-in mechanical stage and slide holder, 75 x 50mm movement, Vernier scale
• Focusing knobs: coaxial coarse and fine with stop
• Mains power: 220 - 240V / 50 - 60Hz
• Converter: built-in low voltage (3.2 - 3.5V electric)
• Illumination: LED 3W with intensity control
• Supplied with: immersion oil (5mL), blue filter, dust cover, power cord with unique 'self-store' system, and instruction manual

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

Incident light microscope for material sciences - Panthera TEC MAT BF is a microscope with a set of long distance plan achromatic and semi-apo objectives, working with UC eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.

Designed as a basic instrument for any life-science laboratory, the inverted AE2000 comes with a Binocular stand. With a surprisingly small footprint, Motic AE2000 fits easily into every laboratory even when space is limited. A robust design and solid manufacturing ensure a long working life time even under rough usage conditions. Easy reach of both focusing and illumination controls guarantee comfortable operation for many hours.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

CCIS Plan achromatic objective EC-H PL 20X/0.45

The AE31 Elite is a professional inverted microscope providing high image quality, ergonomic design and advanced illumination features. The AE31E is the ideal platform for routine microbiology applications in clinical, pharmaceutical laboratories and university research environments.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution

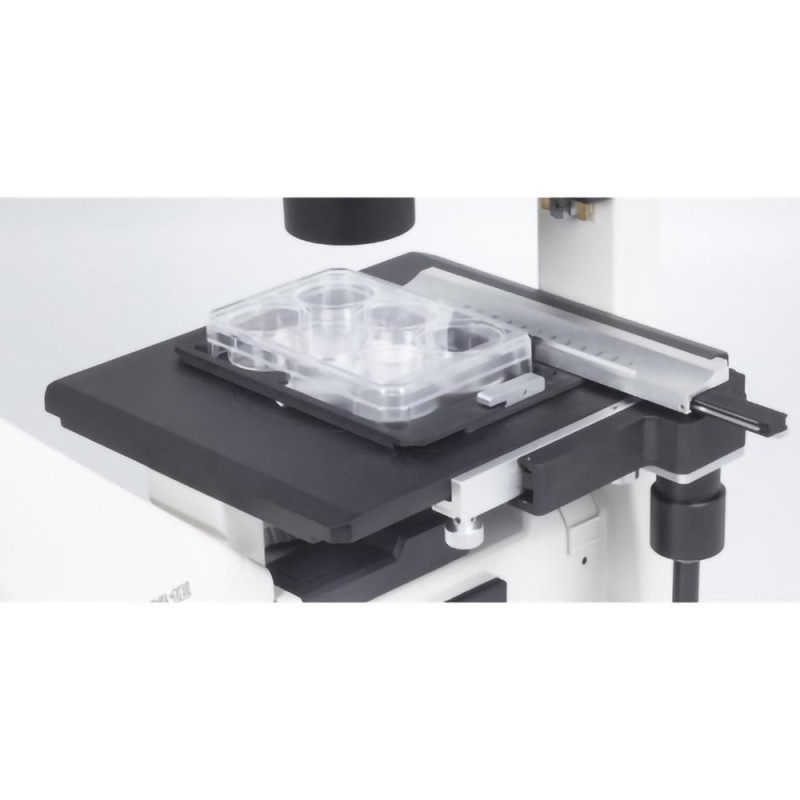

• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available

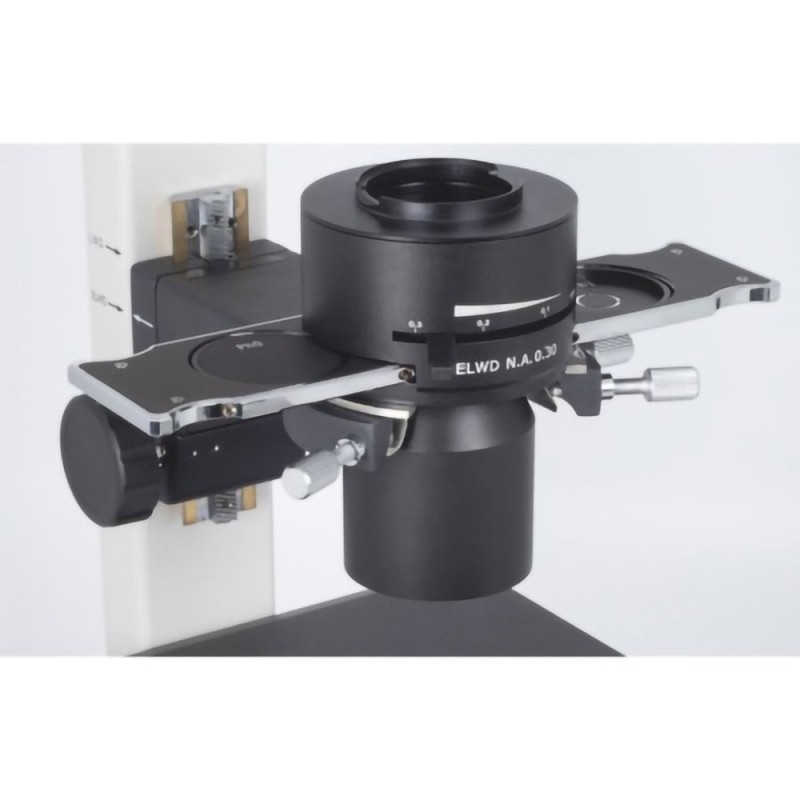

• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 triocular microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.

Designed as a basic instrument for any life-science laboratory, the inverted AE2000 comes with a Trinocular stand. With a surprisingly small footprint, Motic AE2000 fits easily into every laboratory even when space is limited. A robust design and solid manufacturing ensure a long working life time even under rough usage conditions. Easy reach of both focusing and illumination controls guarantee comfortable operation for many hours.

Motic Polarizer

The RED100 series represents the ideal microscope line for primary, secondary and high school students. All microscopes incorporate cordless LED illumination. LEDs display several advantages over the traditional halogen bulbs including: extended life time (>10.000 hours), no heat development (improved user safety), low power consumption (one single charge provides 70 hours of use) and a modern sensation of colour without corrective blue filter.The well positioned focus controls can easily be found by following the curves of the microscope stand. A relaxed seating position allows an intuitive evaluation of the sample by the coaxial coarse/fine focus mechanism. The convenient carrying handle on the back of the stand simplifies storage or just transport. The optics of a microscope of course is the most important component for an instructive teaching.
