Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
The new BA210 Elite model offers a rackless stage concept which eliminates a gear rack and enhances user safety especially in educational environments. A full interchangeability of Halogen and LED light sources for transmitted light improves flexibility for defined colour temperature demands.
BA210 Model

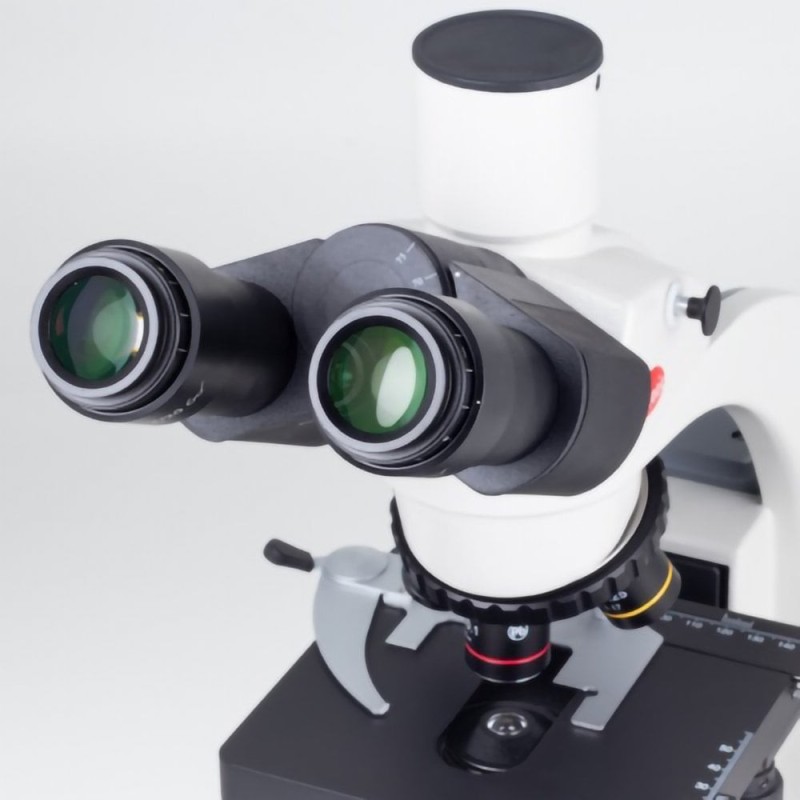

Binocular or Trinocular head Siedentopf type, 30° inclined, 360° rotating; Widefield high eye point eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces; Reversed quadruple revolving nosepiece; CCIS EC Plan Achromatic objectives EC PL 4X, 10X, 40X S, 100X S-oil; Coaxial coarse and fine focusing system with tension adjustment; Built in low position coaxial mechanical stage (right-hand control); Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot; 3W LED illumination with intensity control; Universal power supply 100-240V (CE);45mm blue filter; Immersion oil (5mL); Power cord; Allen key; Thumb screw; Vinyl dust cover. MIC2908 Includes a Built-in Digital unit with the same specifications as the BA210 Binocular but with a Built-in digital camera CMOS ½" chip, 3MP (2048 x 1536 pixels) with USB2.0 output and Motic Images Plus 2.0 for PC and MAC
BA210 ELITE Model
Same specifications as BA210 rackless mechanical stage (right-hand control)with improved stage size (150 x 150mm); Quartz halogen 6V/30W and 3W LEDillumination Full interchangeable on the same unit (No Built-in Digital unit available)
SLS-MIC2006
Data sheet
Industries
Beverage Production
Dairy
Education
Environmental
Farming
Food Production and Safety
Laboratory
Life Science
Manufacturing
Scientific Industries
Water Analysis
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
Panthera is the upright microscope line. its design, together with its optics and digital capabilities, makes it the microscope of tomorrow. Panthera Series has been carefully designed keeping in mind form & functionality. The components chosen for the Panthera Series have been analysed down to the last detail to find the perfect design in terms of practicality and aesthetics. An example of that is the patented rackless stage, compact and with a sample holder.Panthera’s light management system stands out for its automation. The digital intensity knob teams up with the coded LED nosepiece and the illuminator to offer you information about the light intensity, or the microscope’s mode, as well as memorising the light intensity of each objective. The combination of the LED nosepiece and LED condenser, automates the workflow even more, as it also automatically loads a specific N.A. depending on the objective in the light path. Interchangeability between halogen/LED illumination or different 3W LED colour temperatures is very easy thanks to a drawer at the base of the stand.
Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.
