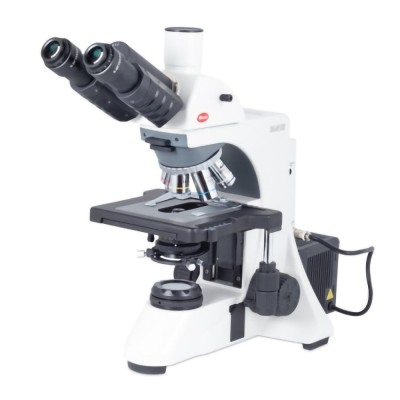

The BA410 Elite is Motic's brand new approach for a professional research microscope with best image quality options. Universities and laboratories with applications in haematology, cytology and histology will look for this flexible microscope platform with a superb performance in optics and mechanics.

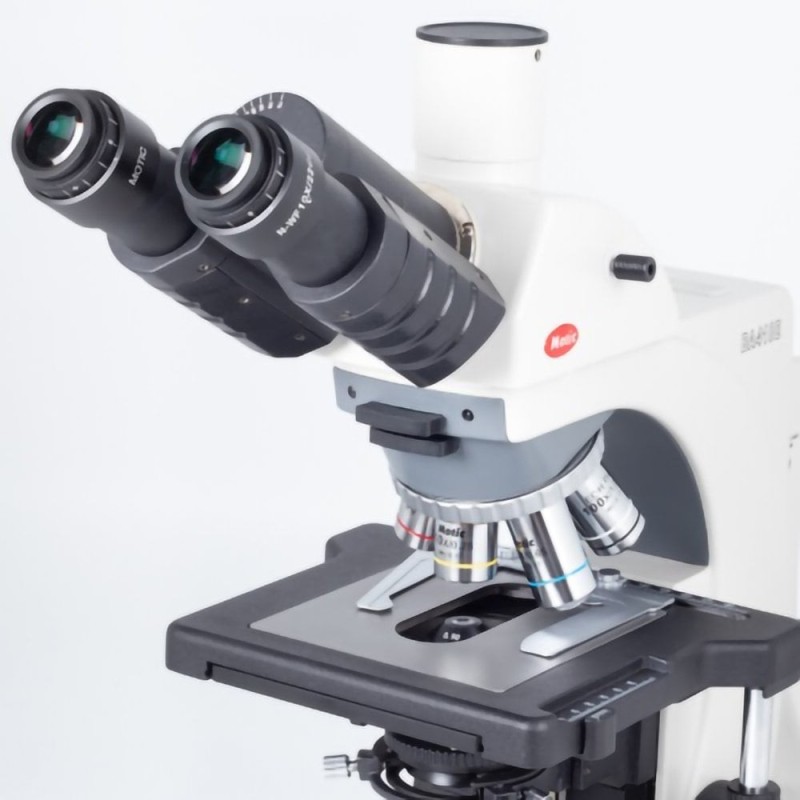

Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain

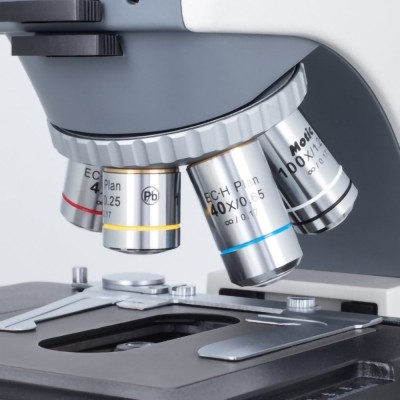

Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution

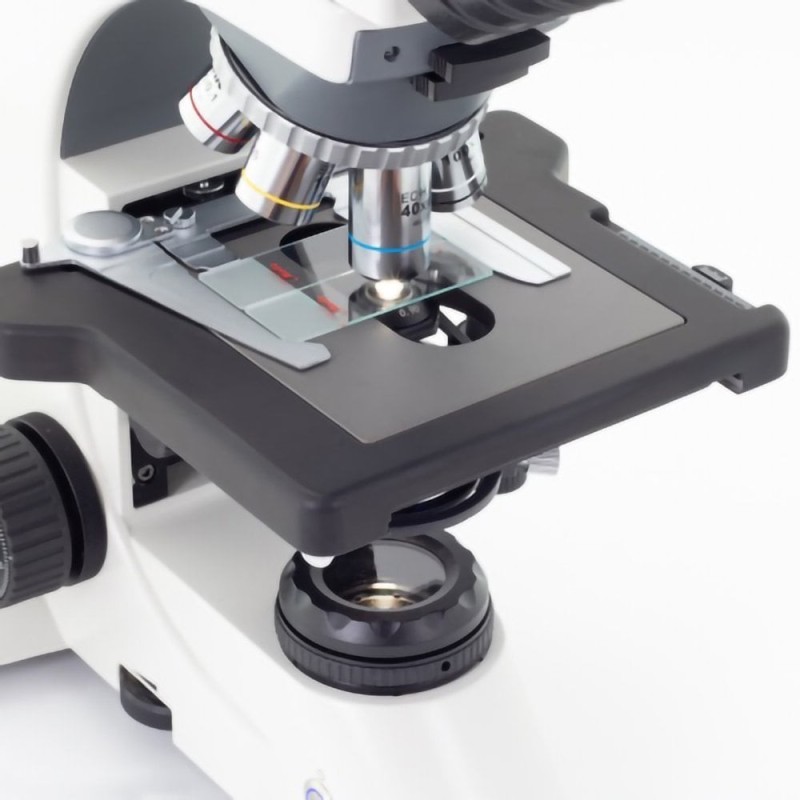

Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
Light features: Auto-OFF and Light Memory function
Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR
SLS-MIC1580
Data sheet
Industries
Beverage Production
Dairy
Education
Environmental
Farming
Food Production and Safety
Laboratory
Life Science
Manufacturing
Scientific Industries
Water Analysis
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.
Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
Light features: Auto-OFF and Light Memory function
Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR
A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 biocular microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.
