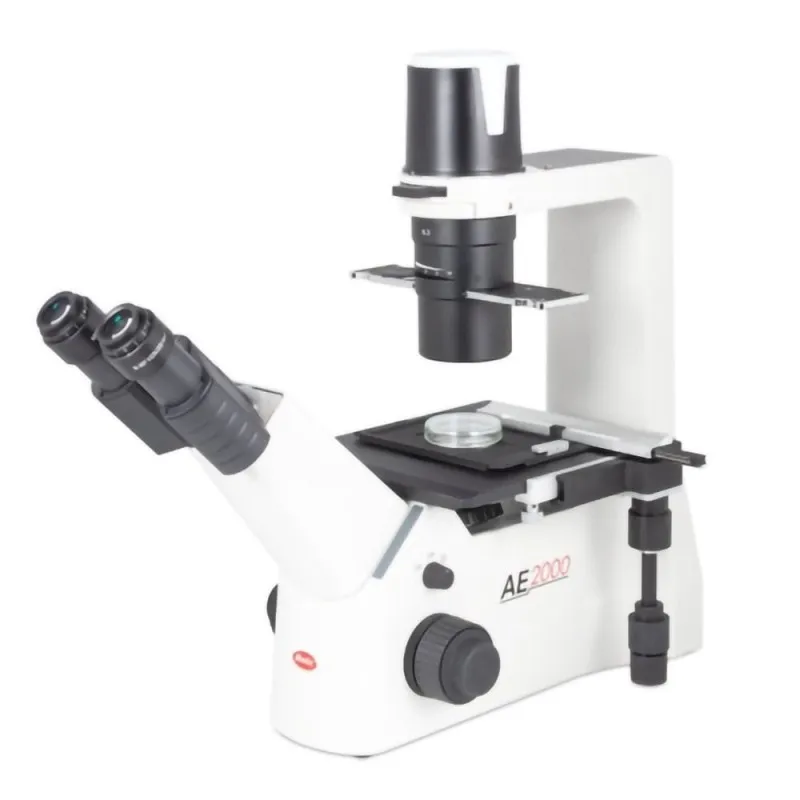

Designed as a basic instrument for any life-science laboratory, the AE2000 comes with a Binocular or Trinocular stand. With a surprisingly small footprint, Motic´s AE2000 fits easily into every laboratory even when space is limited. A robust design and solid manufacturing ensure a long working life time even under rough usage conditions. Easy reach of both focusing and illumination controls guarantee comfortable operation for many hours.

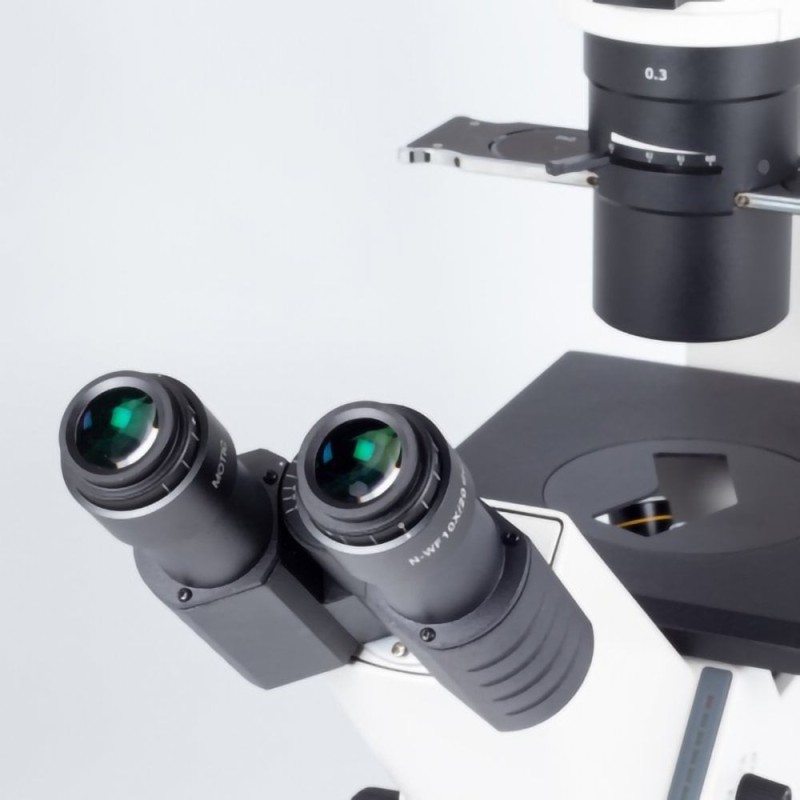

Eyepiece tubes - Allow a 360° swivelling movement as well as a flexible adjustment of the interpupillary distance between 48 and 75mm. The “Butterfly mode” increases the viewing height by 40mm. Designed with a comfortable viewing angle of 45°, all AE2000 eyepiece tubes offer a 20mm Field of View (FOV 20).

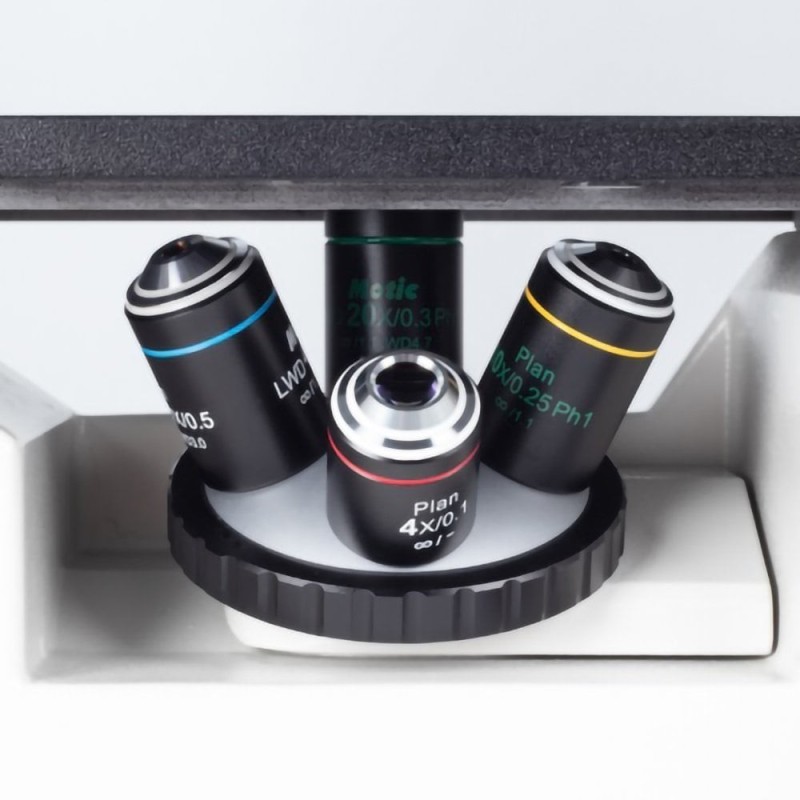

Objectives - Plan Achromatic lenses within the CCIS Infinity Optical concept. Covers the following magnifications for bright field and phase contrast: 4X, 10X, 20X and 40X. The 4X phase objective enables fast overview and screening examinations.

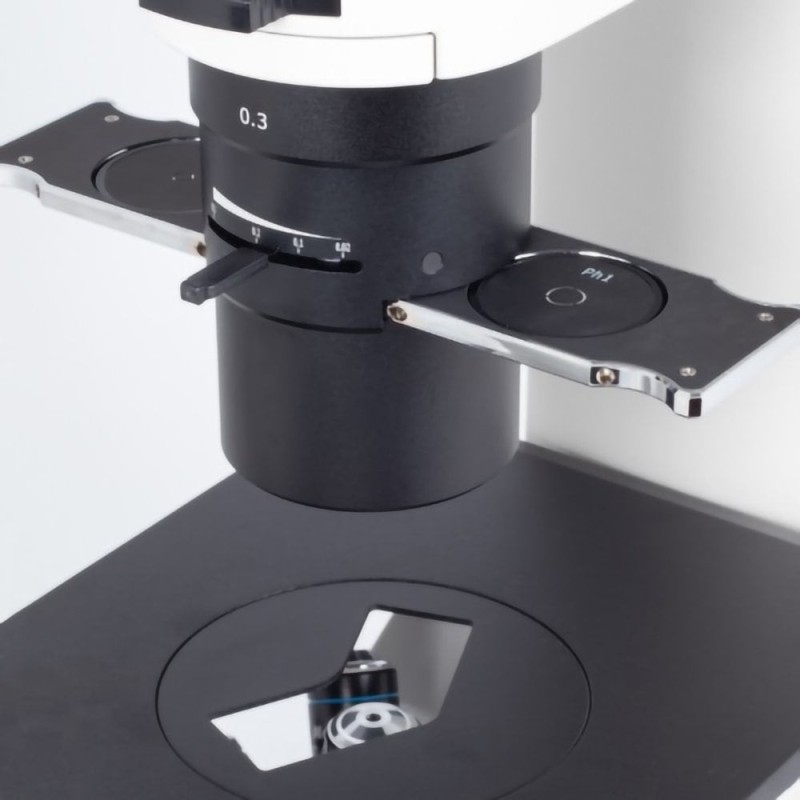

Stage - The convenient low positioned stage for optimised viewer posture and easy access has a new hard-coated surface for easy cleaning. All standard packages contain a glass stage insert as well as a new metal insert. The optional mechanical stage can be supplied with inserts for the more common cell culture vessels, and standard glass slides.

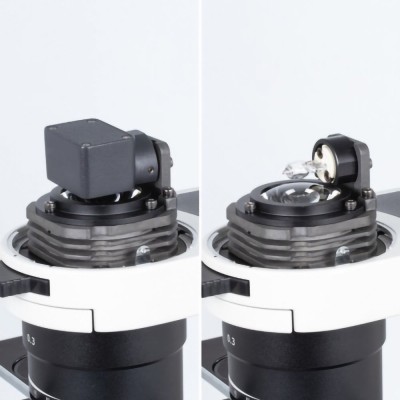

Illumination - Standard packages come with a 6V/30W Halogen illumination, but can be converted to LED by a simple replacement of the Halogen bulb by a small LED module. As a new safety precaution Motic has implemented a “sleep mode”, based on an IR-sensor. This motion sensor detects a user in front of the microscope and automatically turns off the microscope when it is left for more than 15 minutes.
AE2000 Binocular - Binocular head Siedentopf type 45° inclined, 360° swivelling Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups Side facing quadruple nosepiece CCIS Plan Achromatic objectives PL4X, LWD PL40X CCIS Plan Achromatic Phase objectives PL Ph10X, LWD PL Ph20X ELWD condenser N.A.0.30 Phase slider Ph1, BF, Phase centering telescope Plain stage with metal and glass stage inserts Halogen illumination 6V/30W with intensity control and sleeping mode 45mm blue, green interference and neutral density filters with filter slider Allen hexagonal key, vinyl dust cover, power cord Power supply 100-240V (CE)

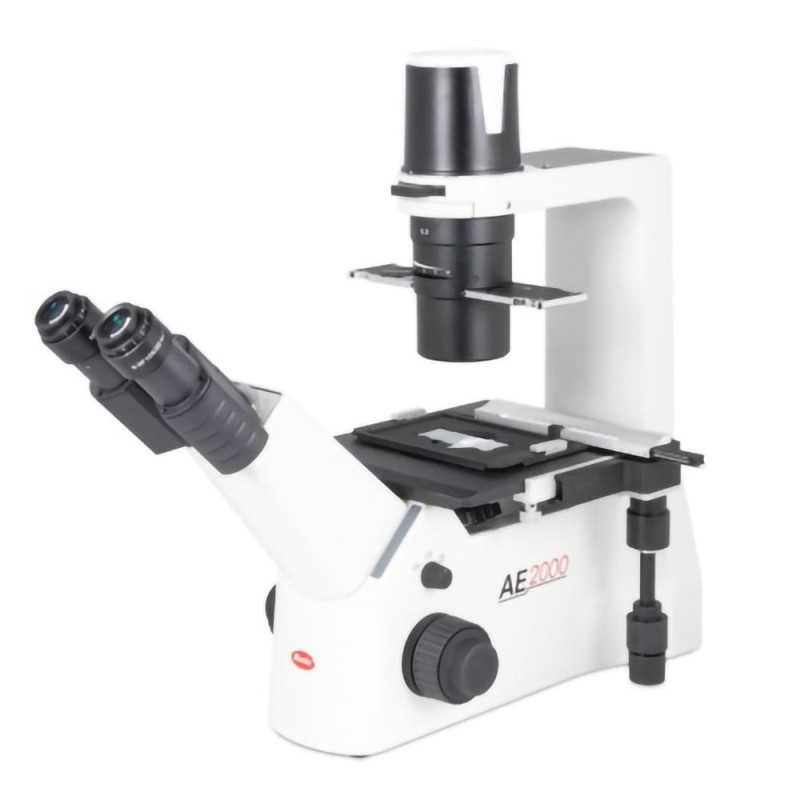

AE2000 Trinocular - Same specifications as AE2000 Binocular but with Trinocular head Siedentopf type 45° inclined, 360° swivelling (Light split = 20:80)
Data sheet
