New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Simple add on polariser - suitable for a range of Motic microscopes.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution

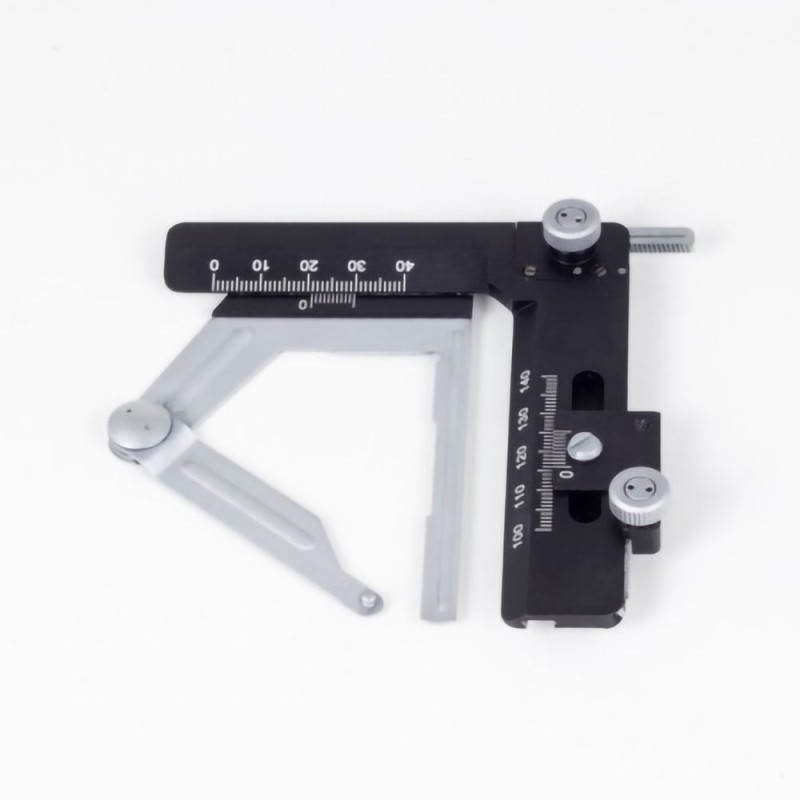

• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

• Attachable digital C-mount camera
• Bracket holder for tablets from 7” to 10” (Tablet not included)
• Sensor: CMOS
• Sensor size: 1/3"
• Live resolution Wi-Fi: 1280x720 pixels, 1920x1080 pixels (Full HD)
• Live resolution USB: Depending on the tablet resolution
• Image capture resolution: 4.0MP
• Output: Wi-Fi
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide & calibration dot
• Power supply 12V (CE)

Motic Analyzer

CCIS Plan achromatic objective EC-H PL 20X/0.45

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Motic Haemocytometer Holder 35 x 76mm

Panthera E2 is the newest generation of transmitted light microscopes. Robust and reliable yet ready for any ambitious work in educational environments and small life science labs. Sections from plants, native transparent samples, but also medical specimen are displayed by our CCIS® Plan Ultra Contrast objectives with an impressive image quality. The Panthera E2 features a reversed 4-fold nosepiece with a rackless x/y stage. Illumination is provided by a 1W LED light source in a Fixed Koehler setup.

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

Epi-LED Fluorescence MB filter cube 470nm LED Module attachment for BA310 Elite Models only.

Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
