Panthera C2 Microscope Binocular
    Panthera C2 Microscope Binocular
    Panthera C2 Microscope Binocular
    Panthera C2 Microscope Binocular

Motic

Panthera C2 Microscope Binocular

Quantity

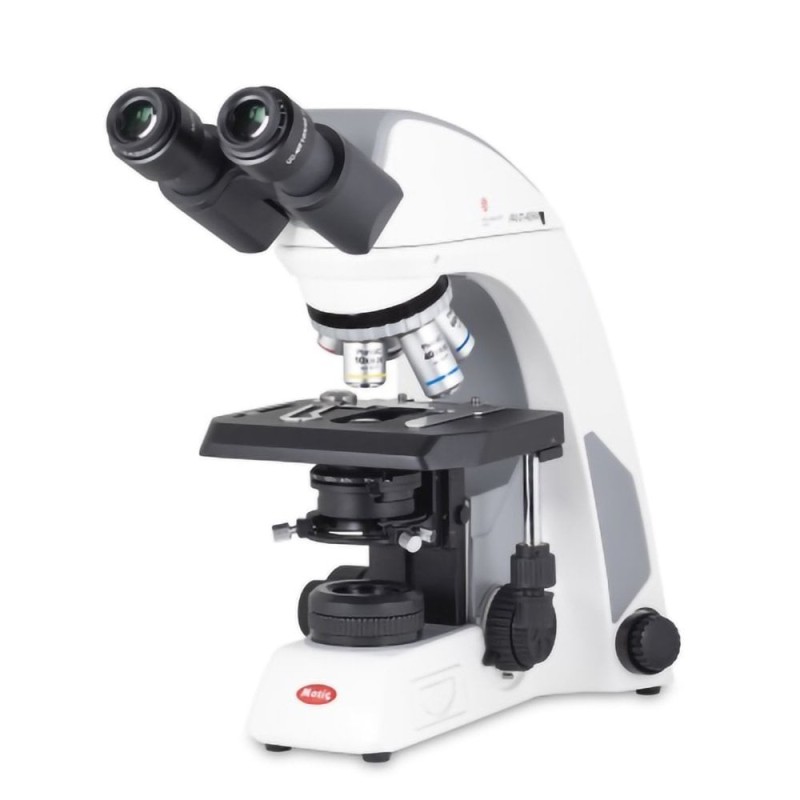

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 biocular microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

Binocular/trinocular head, Siedentopf type, 360° swivelling

Colour Corrected Infinity Optical System (CCIS®)

25° inclined, 360° swivelling

48-75mm interpupillary distance

Dioptre adjustment on both eyepieces, ±5 dioptre

Widefield UC-WF10X/22mm eyepieces with dioptre adjustment

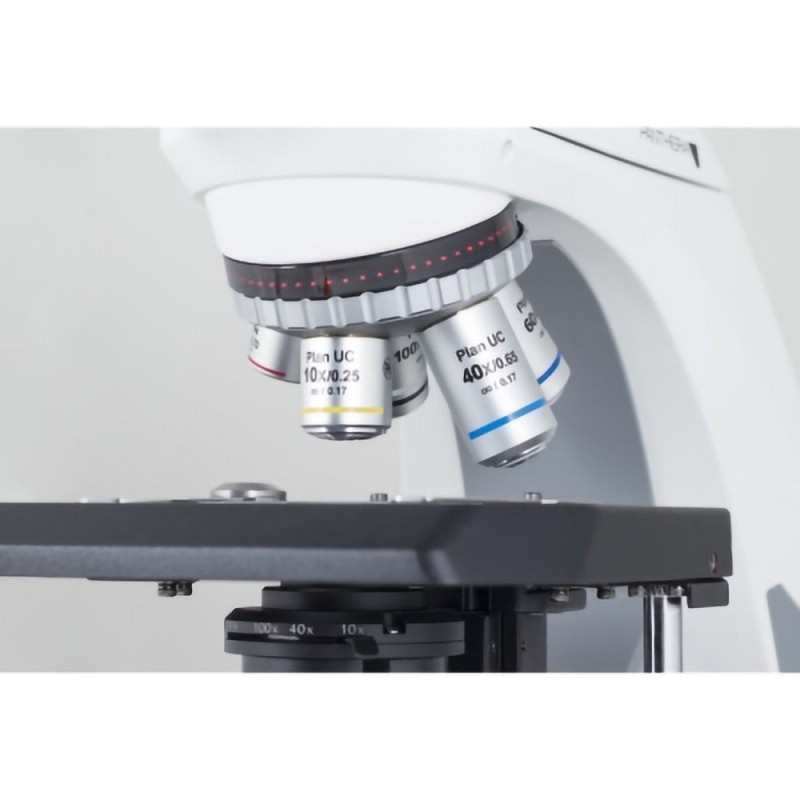

Reversed quintuple nosepiece, coded

CCIS® UC Plan Achromatic (Pb free), DIN

Objectives: 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)

W 4/5″x1/36″ (RMS standard) objective mounting thread

Upright stand

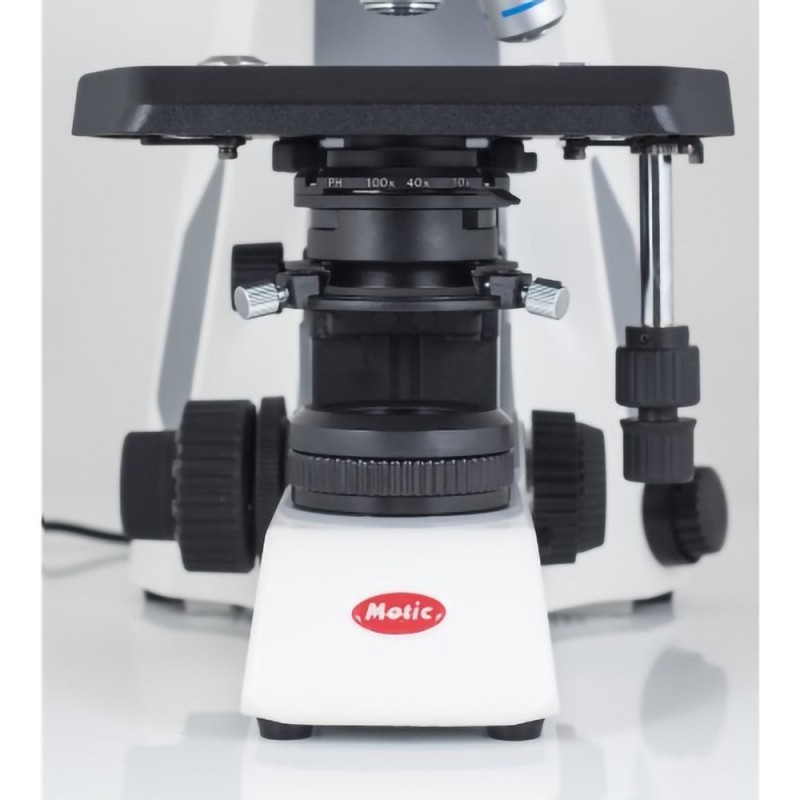

Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder

Stage size: 185 x 145mm

Travel range X&Y: 75 x 50mm

Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders

Iris diaphragm

Coaxial coarse and fine focusing system with tension adjustment (2µm precision; 25mm stroke)

Upper limit stop preset but adjustable

Filter holder

Koehler LED 3W and Quartz halogen 6V/30W illumination with intensity control

Halogen/LED and LED colour temperature interchangeability

Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator

USB 2.0 for external camera power

Supplied with: dust cover, power cord, Allen key, immersion oil (5mL), blue filter, halogen bulb and LED module

SL-MIC2822

Data sheet
