Motic Polarizer

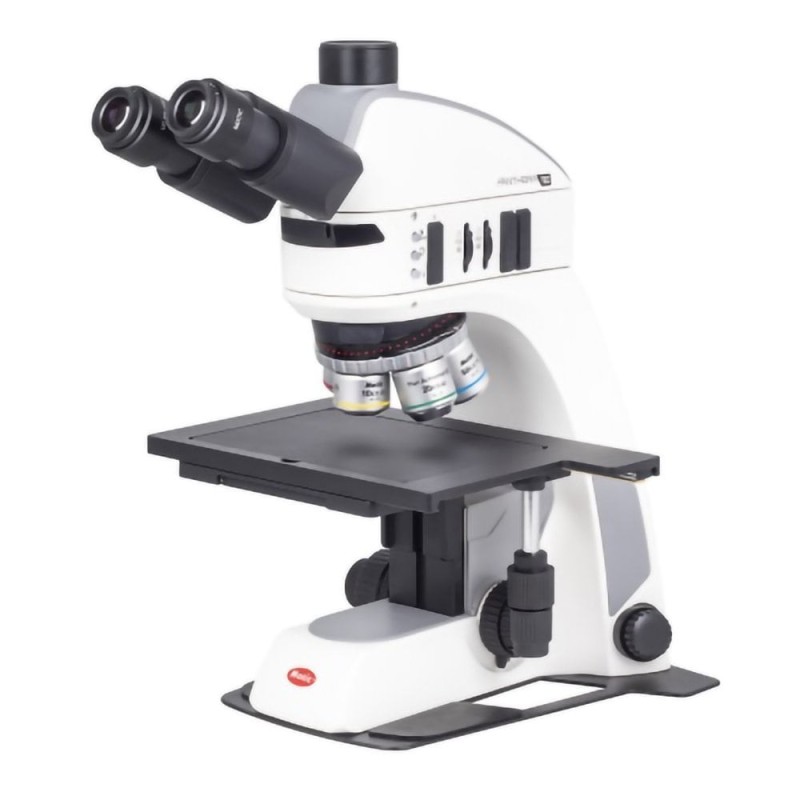

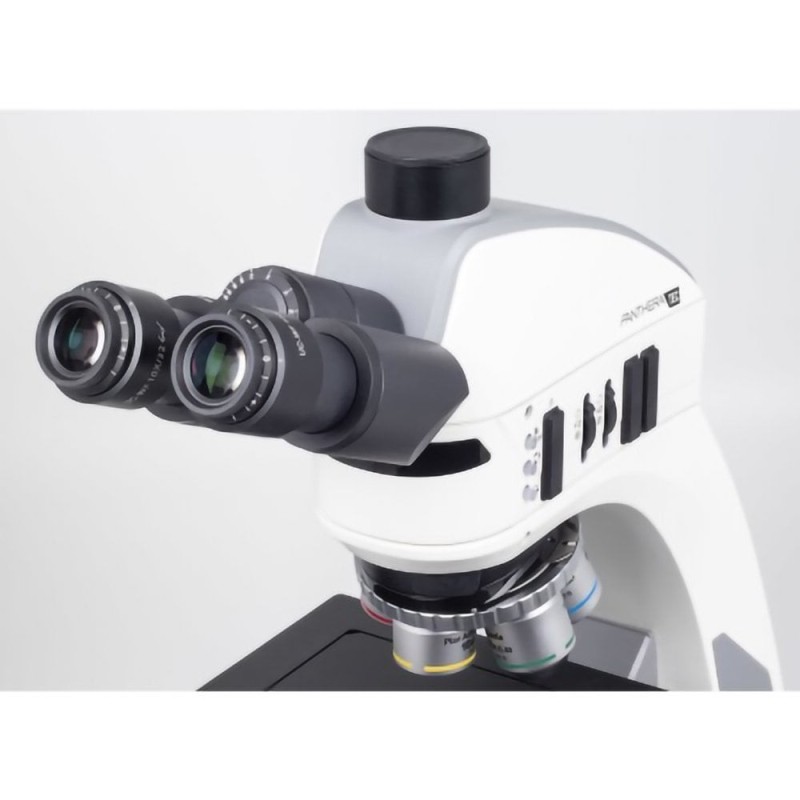

Incident light microscope for material sciences - Panthera TEC MAT BF is a microscope with a set of long distance plan achromatic and semi-apo objectives, working with UC eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

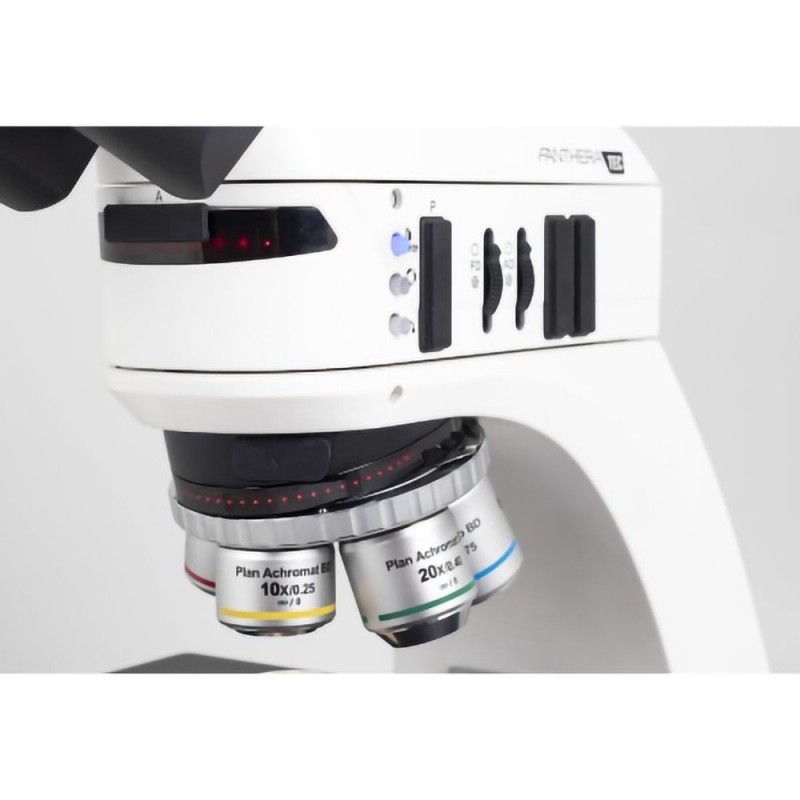

Panthera is the upright microscope line. its design, together with its optics and digital capabilities, makes it the microscope of tomorrow. Panthera Series has been carefully designed keeping in mind form & functionality. The components chosen for the Panthera Series have been analysed down to the last detail to find the perfect design in terms of practicality and aesthetics. An example of that is the patented rackless stage, compact and with a sample holder.Panthera’s light management system stands out for its automation. The digital intensity knob teams up with the coded LED nosepiece and the illuminator to offer you information about the light intensity, or the microscope’s mode, as well as memorising the light intensity of each objective. The combination of the LED nosepiece and LED condenser, automates the workflow even more, as it also automatically loads a specific N.A. depending on the objective in the light path. Interchangeability between halogen/LED illumination or different 3W LED colour temperatures is very easy thanks to a drawer at the base of the stand.

Designed as a basic instrument for any life-science laboratory, the inverted AE2000 comes with a Binocular stand. With a surprisingly small footprint, Motic AE2000 fits easily into every laboratory even when space is limited. A robust design and solid manufacturing ensure a long working life time even under rough usage conditions. Easy reach of both focusing and illumination controls guarantee comfortable operation for many hours.

Motic Analyzer

The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.

Motic Haemocytometer Holder 35 x 76mm

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.

Epi-LED Fluorescence MB filter cube 470nm LED Module attachment for BA310 Elite Models only.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

The AE31 Elite is a professional inverted microscope providing high image quality, ergonomic design and advanced illumination features. The AE31E is the ideal platform for routine microbiology applications in clinical, pharmaceutical laboratories and university research environments.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

2 Arm Gooseneck Light Guide
