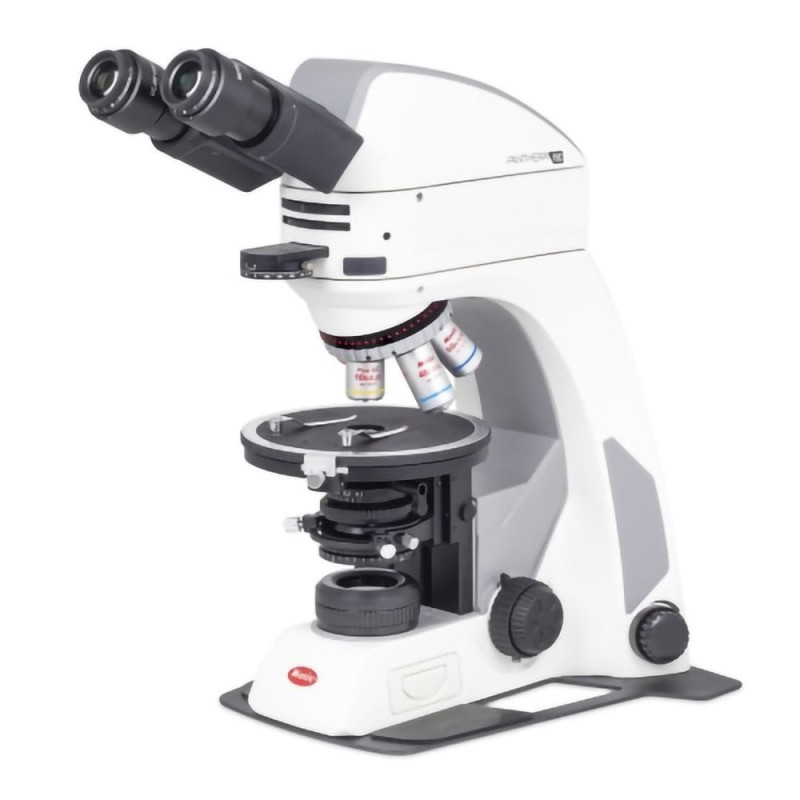

Panthera TEC POL Digital Microscope
    Panthera TEC POL Digital Microscope
    Panthera TEC POL Digital Microscope
    Panthera TEC POL Digital Microscope

Motic

Panthera TEC POL Digital Microscope

Quantity

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Go to Product Description

ASK A QUESTION

Please fill in the form below to ask a question about this product:

  100% Secure Shopping

100% Secure Shopping & Payment Gateway

  Express Delivery

We aim to ship all stocked items within 1-3 working days.

  Hassle Free Returns

Not 100% happy with your order? find out more about our returns policy.

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Siedentopf head type 25° inclined

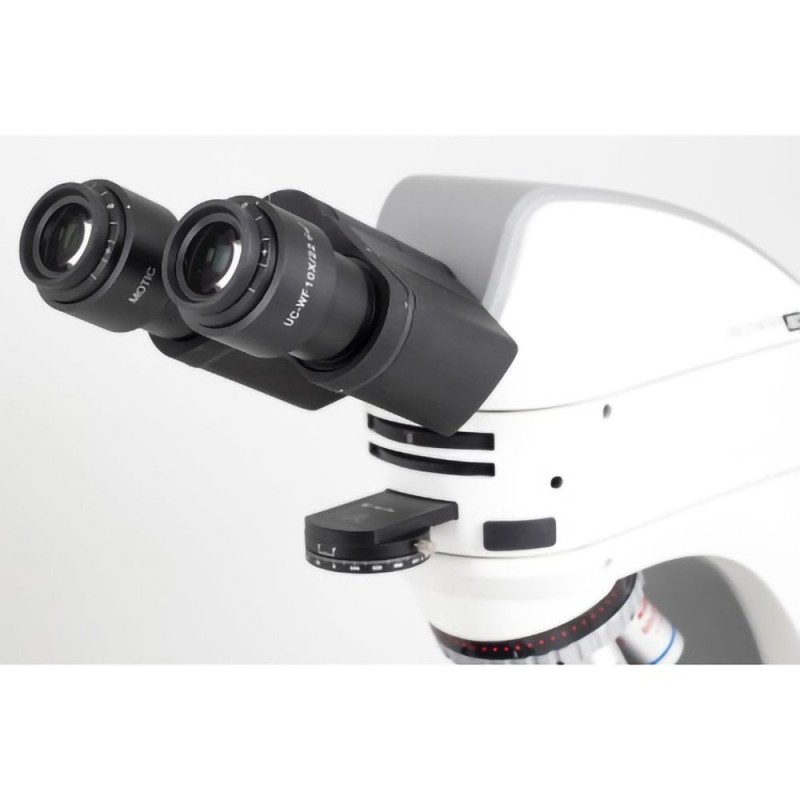

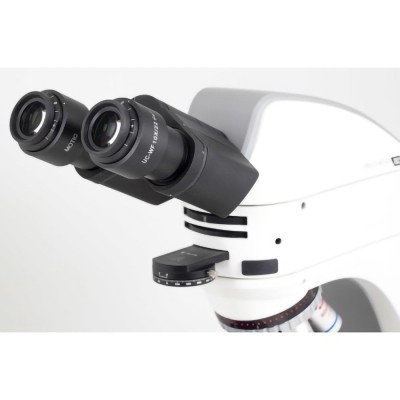

Widefield high eyepoint eyepieces UC-WF10X/22mm

One eyepiece with crosshair reticle and positioning pivot

Intermediate tube with Bertrand lens

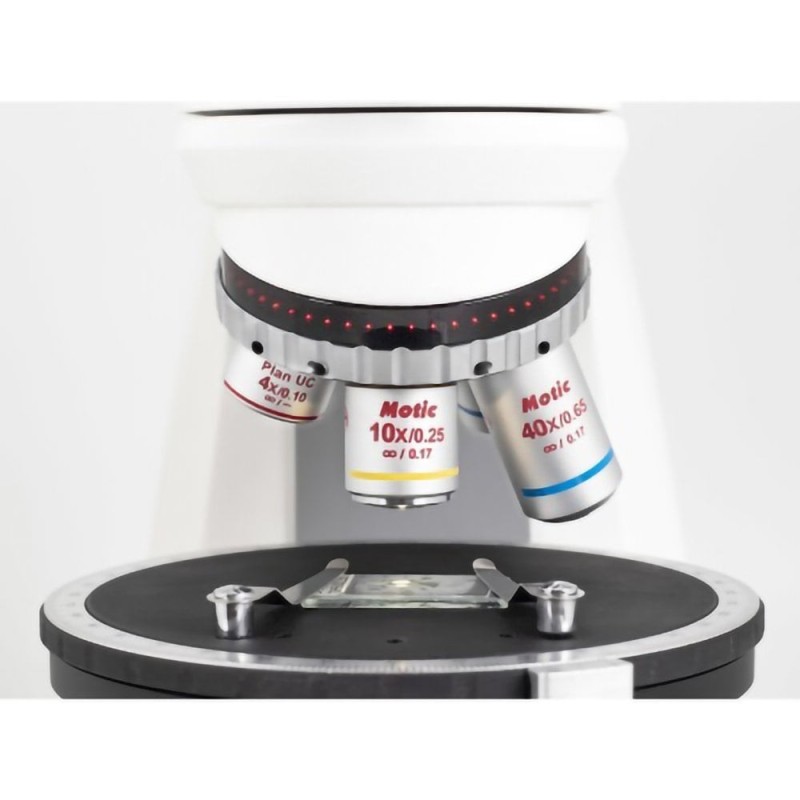

Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)

UC plan achromatic (strain free) objectives 4x, 10x, 40x and 60x

360° circular rotatable stage

Focusable and centerable achromat swing-out Abbe condenser N.A. 0.90/0.13 (strain free) and rotatable polariser

Coaxial coarse and fine focusing system with tension adjustment

360° rotatable analyser

Empty insertion plate

Koehler illumination halogen module 30W, optional 3W LED module

USB port for external camera power supply

Motic light tracer: light memory, sleep mode, nosepiece LED light intensity and mode indicator

SL-MIC4028
