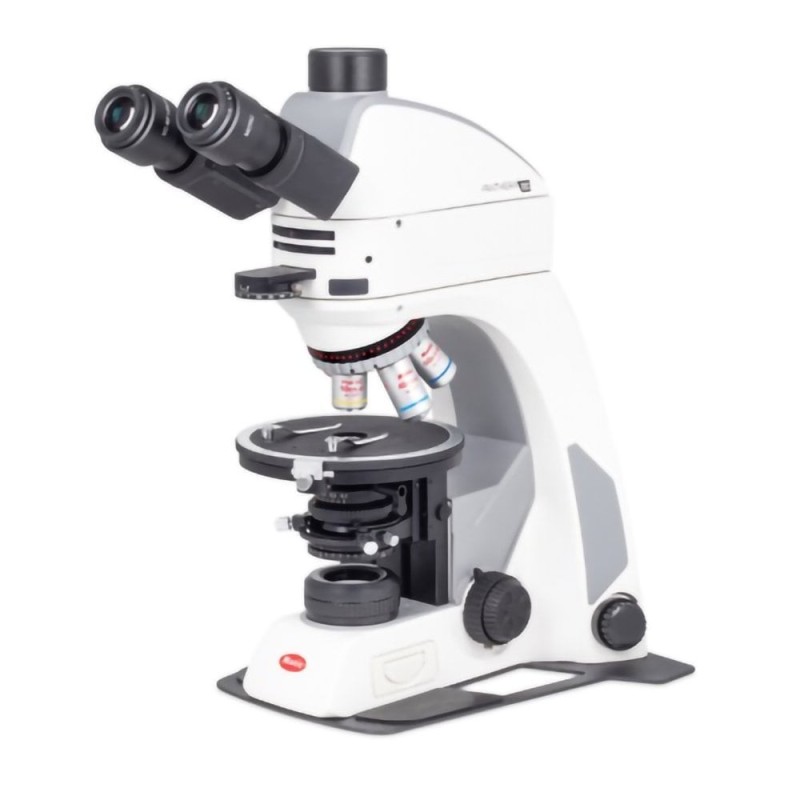

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

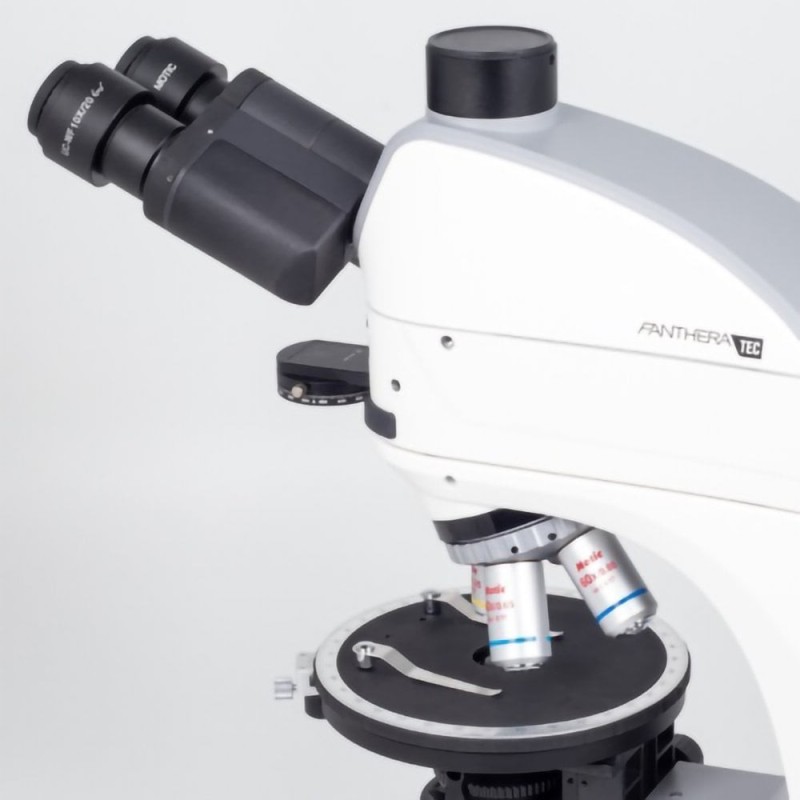

Siedentopf head type 25° inclined
Widefield high eyepoint eyepieces UC-WF10X/22mm
One eyepiece with crosshair reticle and positioning pivot
Intermediate tube with Bertrand lens
Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)

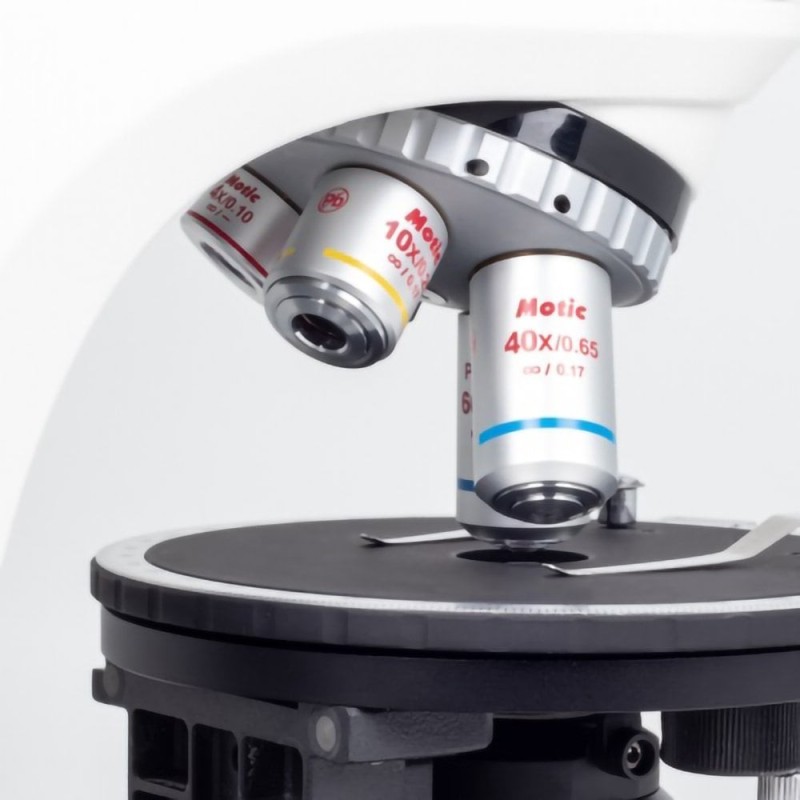

UC plan achromatic (strain free) objectives 4x, 10x, 40x and 60x
360° circular rotatable stage
Focusable and centerable achromat swing-out Abbe condenser N.A. 0.90/0.13 (strain free) and rotatable polariser
Coaxial coarse and fine focusing system with tension adjustment
360° rotatable analyser
Empty insertion plate
Koehler illumination halogen module 30W, optional 3W LED module
USB port for external camera power supply
Motic light tracer: light memory, sleep mode, nosepiece LED light intensity and mode indicator
