Incident light microscope for material sciences - Panthera TEC MAT BF is a microscope with a set of long distance plan achromatic and semi-apo objectives, working with UC eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

The AE31E Elite is a professional inverted microscope providing high image quality, ergonomic design and advanced illumination features. The AE31E is the ideal platform for routine microbiology applications in clinical, pharmaceutical laboratories and university research environments.

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

The AE31 Elite is a professional inverted microscope providing high image quality, ergonomic design and advanced illumination features. The AE31E is the ideal platform for routine microbiology applications in clinical, pharmaceutical laboratories and university research environments.

Panthera E2 is the newest generation of transmitted light microscopes. Robust and reliable yet ready for any ambitious work in educational environments and small life science labs. Sections from plants, native transparent samples, but also medical specimen are displayed by our CCIS® Plan Ultra Contrast objectives with an impressive image quality. The Panthera E2 features a reversed 4-fold nosepiece with a rackless x/y stage. Illumination is provided by a 1W LED light source in a Fixed Koehler setup.

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

Huygens eyepiece H5X/14.5mm

The SLS Lab Basics Max III Trinocular Compound Microscope (4x, 10x, 40x, 100x Infinity Corrected Plan Achromatic) is professionally designed for laboratory applications in teaching laboratories, offering precise high-quality images with its fully-coated optical system. This microscope comes with an inclined 30 and 360 rotatable trinocular head and a built-in mechanical stage. Four high clarity Infinity Corrected Plan Achromatic objectives are supplied as standard.

• Integral carrying handle allows for one handed transportation of the microscope
• Precondenser: fixed lens, which is removable to accept a mirror (for locations without power) and to allow for lamp replacement
• All objectives are colour coded to ease identification when in use
• Reversed nosepiece and full mechanical stage: quadruple reversed, so providing easy uninterrupted access to the stage when changing over slides, has full X/Y movement and spring loaded slide holder
• Optical head: trinocular with photo port inclined at 30, interpupillary distance adjustment (Siedentopf type): 47 to 78mm, dioptric adjustment on one eyepiece
• Eyepieces: 10x/18mm wide-field (pointer in one eyepiece)
• Nosepiece: quadruple reversed, revolving with click stop
• Objectives: 4x, 10x, 40x, 100x infinity corrected plan achromatic
• Condenser: brightfield Abbe NA 1.25 - precentred, focusable, iris diaphragm and filter holder
• Stage: 160 x 140mm with built-in mechanical stage and slide holder, 75 x 50mm movement, Vernier scale
• Focusing knobs: coaxial coarse and fine with stop
• Mains power: 220 - 240V / 50 - 60Hz
• Converter: built-in low voltage (3.2 - 3.5V electric)
• Illumination: LED 3W with intensity control
• Supplied with: immersion oil (5mL), blue filter, dust cover, power cord with unique 'self-store' system, and instruction manual

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.

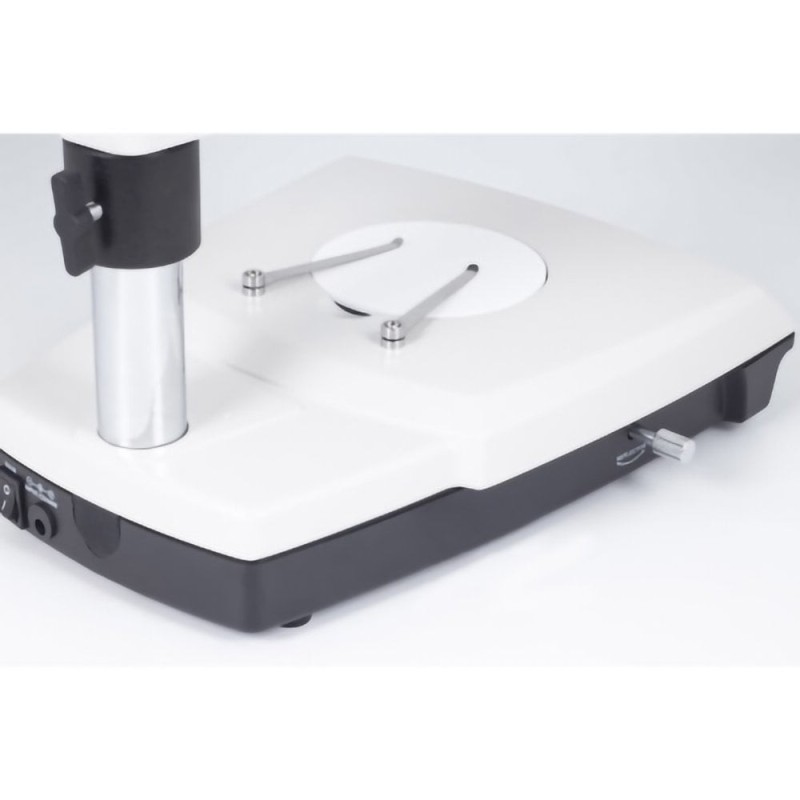

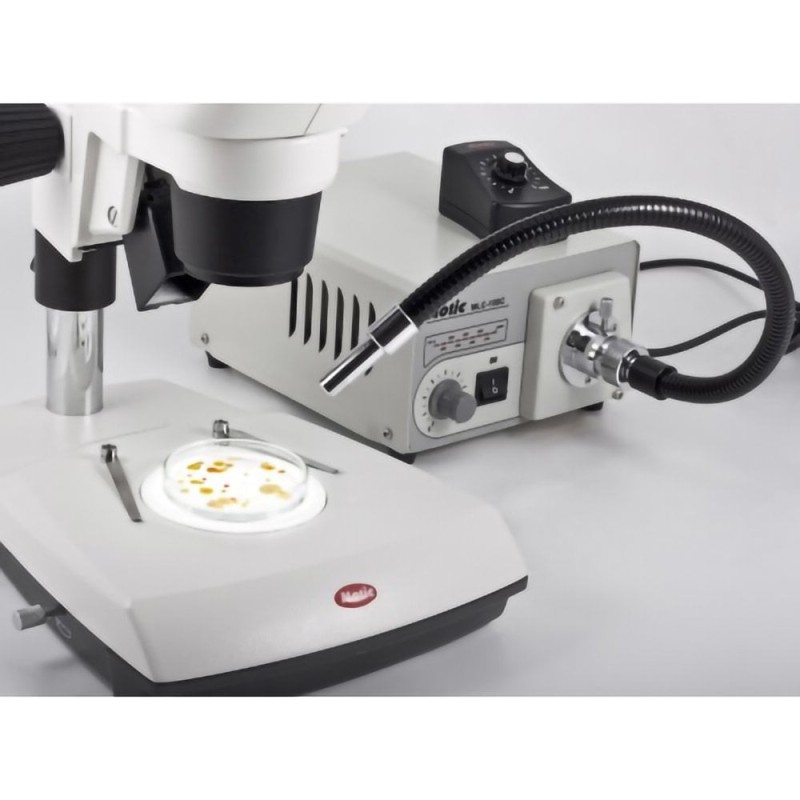

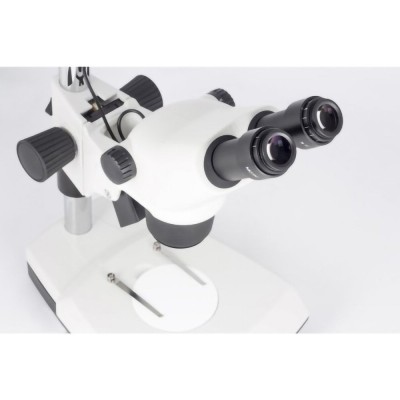

With the new SMZ-171 stereo zoom microscope Motic introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimised LED illumination options have been added to this series to create a versatile stereo microscope platform for biological and medical preparations to industrial quality control and inspection.

Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.
