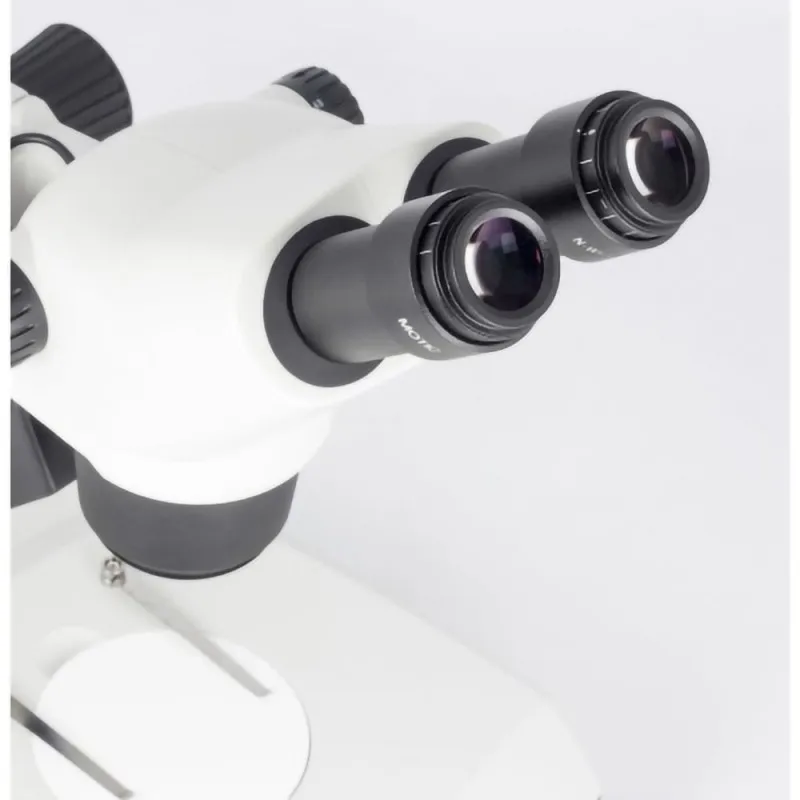

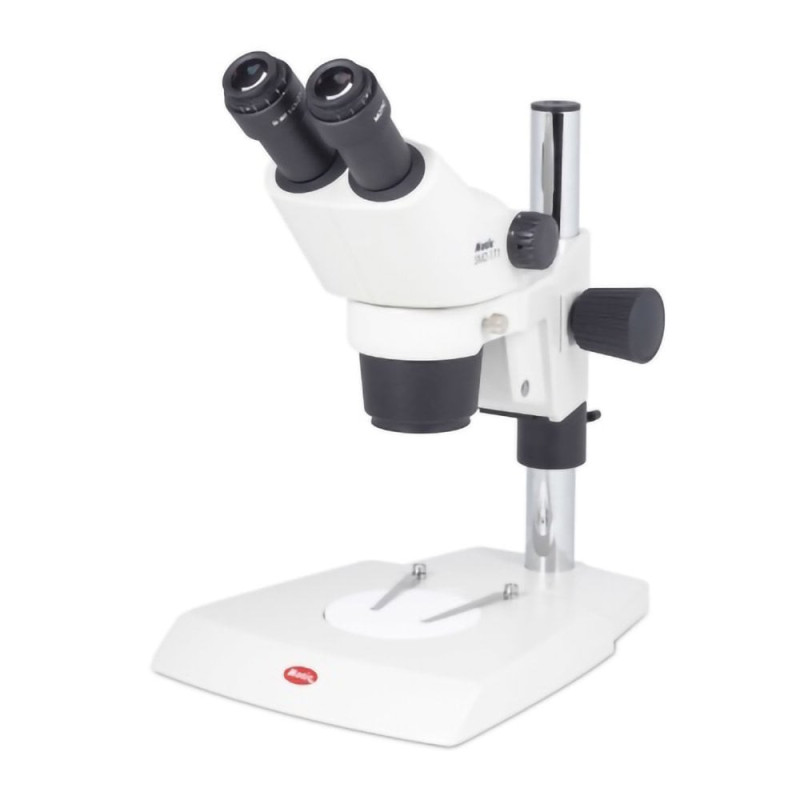

With the new SMZ-171 stereo zoom microscope Motic introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimised LED illumination options have been added to this series to create a versatile stereo microscope platform for biological and medical preparations to industrial quality control and inspection.

CCIS Plan achromatic objective EC-H PL 2X/0.05 (WD=7.2mm)

Panthera E2 is the newest generation of transmitted light microscopes. Robust and reliable yet ready for any ambitious work in educational environments and small life science labs. Sections from plants, native transparent samples, but also medical specimen are displayed by our CCIS® Plan Ultra Contrast objectives with an impressive image quality. The Panthera E2 features a reversed 4-fold nosepiece with a rackless x/y stage. Illumination is provided by a 1W LED light source in a Fixed Koehler setup.

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

Moticam X5 Plus transfers live images up to 30 fps and captures images at 4.0MP: a compact WiFi camera to share live images with up to 6 devices at the same time. A powerful high-res solution to turn your microscope into a WiFi station. Simply log-on with your tablet or smartphone and get ready to capture, edit and save your images with the free MotiConnect app. Use your computer with Motic Images Plus 3.1 Software for further image processing.

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.

• Smooth magnification change
• Use up to five objectives
• Ergonomically-positioned focus knob, stage and eyepiece position
• Specimen holders that match your observation style
• Uniform illumination with consistent colour temperature
• Excellent optical performance for flat images
• Contrast enhancement with simple aperture stop operation
• Simple fluorescence observation
• Single-handed sample placement
• Observation method: phase contrast, Blue excitation fluorescence, Simple polarized light, brightfield, darkfield
• Observation Tubes:  Standard FN18 Tilting binocular, Standard FN20 binocular and trinocular

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

The AE31 Elite is a professional inverted microscope providing high image quality, ergonomic design and advanced illumination features. The AE31E is the ideal platform for routine microbiology applications in clinical, pharmaceutical laboratories and university research environments.

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 triocular microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.

Transmitted/incident light microscope for diverse polarisation applications. With UC plan achromatic objectives and eyepieces of 22mm field of view. The Motic Light Tracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux
