2 Arm Gooseneck Light Guide

New transmitted light workstation for the investigation of birefringent samples. Includes a set of new UC plan achromatic (strain free) objectives and eyepieces of 22mm field of view. The Motic LightTracer system with memory function, a built in low energy mode and an LED feedback indicator helps to optimise your workflow.

A new world-class level microscope cased in a revolutionary technical future-orientated solution. The Panthera C2 biocular microscope for Life Sciences: your instrument for demanding applications. This model comes with a complete set of UC Plan Achromats and 22mm Field of View making outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Koehler setup. The Motic LightTracer with coded nosepiece, a built-in Low Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimise your daily workflow.

Motic Polarizer

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR

35mm petri dish holder for the Motic AE31 Elite

Epi-LED Fluorescence FITC filter cube 470nm LED Module for use with the Motic BA310 Elite range

Targetted at Educational Life Science, Medical and Biological applications, the BA210 is designed for ease of use and longevity. Student proof features, working together with EC Plan Achromatic objectives provide a fully corrected intermediate image for crisp and clear digital and visual results. With quartz halogen 6V / 30W or 3W LED illumination, light consuming contrast methods like Phase contrast, Polarisation or Darkfield are easily performed.

The RED100 series represents the ideal microscope line for primary, secondary and high school students. All microscopes incorporate cordless LED illumination. LEDs display several advantages over the traditional halogen bulbs including: extended life time (>10.000 hours), no heat development (improved user safety), low power consumption (one single charge provides 70 hours of use) and a modern sensation of colour without corrective blue filter.The well positioned focus controls can easily be found by following the curves of the microscope stand. A relaxed seating position allows an intuitive evaluation of the sample by the coaxial coarse/fine focus mechanism. The convenient carrying handle on the back of the stand simplifies storage or just transport. The optics of a microscope of course is the most important component for an instructive teaching.

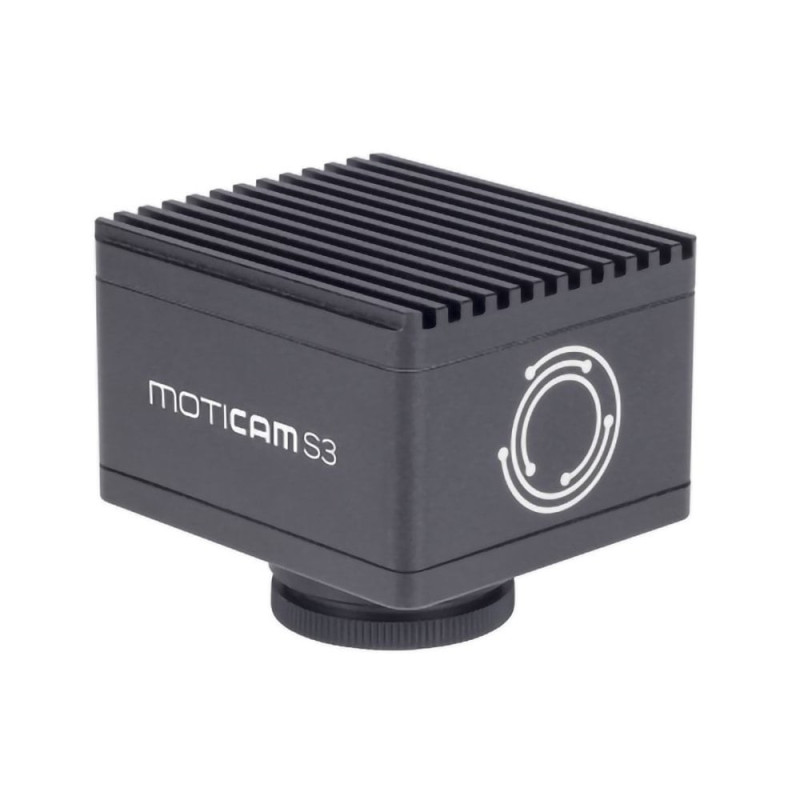

• Attachable digital C-mount camera
• Sensor: sCMOS
• Output: attachable USB 3.1
• Motic Images Plus 3.0 for Windows, OSX and Linux
• Motic 4-dot calibration slide
• Operation system: Windows, OSX and Linux

CCIS Plan achromatic objective EC-H PL 20X/0.45

• Eyepiece Tubes - Viewing angle of 30°, 22 mm Field of View with interpupillary distance adjustable between 50-75mm
• Eyepieces - Infinity Corrected CCIS® Optics with a field flatness up to 22mm and the high eye point ensure true colour and sharp images and minimise eye fatigue and strain
• Objectives - New class of EC-H optics for Bright Field and Phase Contrast incorporate multi-layer coated glass for enhanced contrast and spherical aberration correction to significantly improve field flatness and improve resolution
• Stage - New Rackless low position coaxial mechanical stage with sample holder and ceramic insert. Mechanical travel range from 80 x 55 mm
• Light features: Auto-OFF and Light Memory function
• Illumination - Externally mounted lamphouse, 12V/50W Quartz Halogen Koehler illumination with intensity control. A 12V/100W Koehler system is also available
• Phase Contrast & Darkfield –Options include a slider solution or a turret condenser for more advanced Phase contrast demands
• Polarisation - Polarisation can be achieved using 2 slots in the upper part of the stand which can accommodate a rotatable analyser, retardation plate (First Order Red Compensator) and a polarizer placed on top of the collector
• Fluorescence – Easily upgradeable to an EPI-Fluorescence microscope by using the fluorescence attachment which can carry up to 4 filter cubes. A complete range of filter cubes is available, covering all routine applications from UV up to NIR
