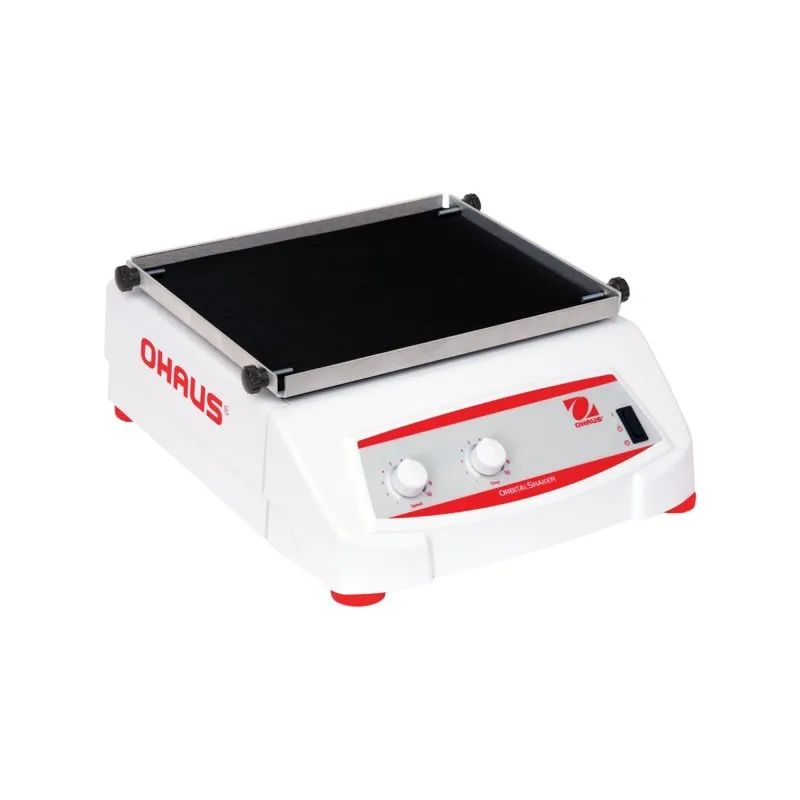

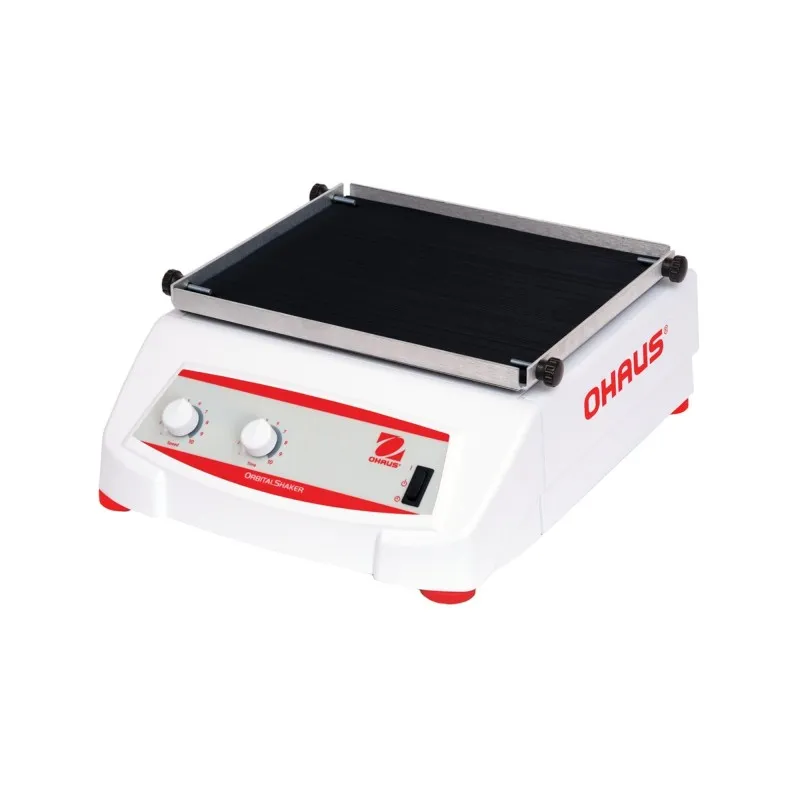

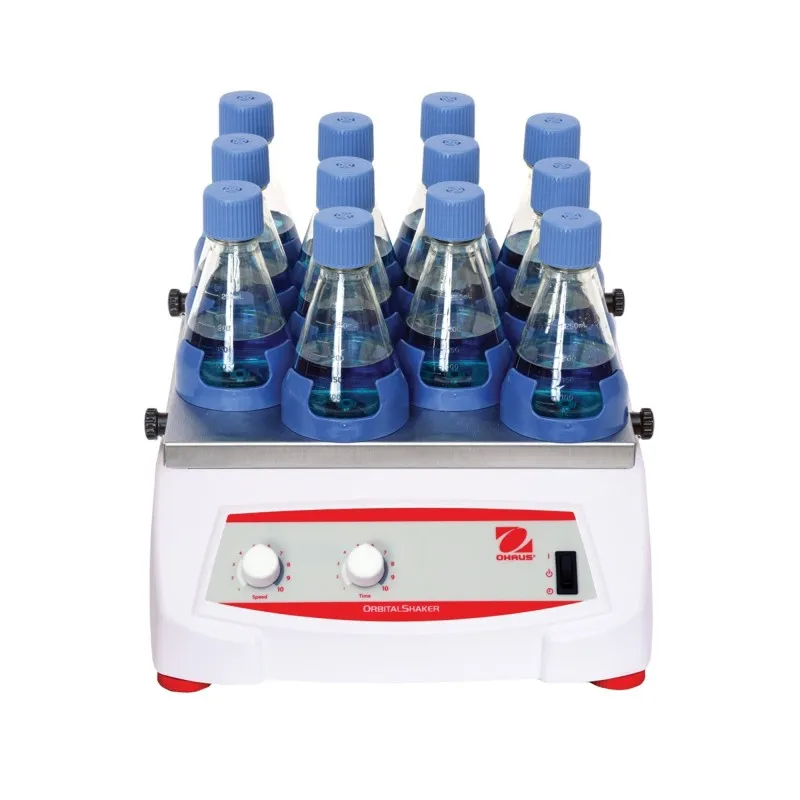

Ohaus Heavy Duty Analog Shakers are designed to handle a wide range of applications no matter how difficult the task. Powerful, convenient shakers provide consistent orbital shaking action to maximize throughput and efficiency in your laboratory.
Benefits
Motion: Orbital, 19 mm
Capacity: 16 kg
Speed Range: 25 rpm – 500 rpm
Load sensor detects unbalanced conditions and automatically reduces to a safe speed
Applications: Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
All models include a tray and rubber mat and can be customized with over 70 accessory options (sold separately). The maintenance-free motor for long-term use with optimal speed ramping feature slowly increases speed to setpoint to avoid splashing.
OH-SHHD1619AL
Data sheet
Industries
Beverage Production
Dairy
Environmental
Farming
Food Production and Safety
Laboratory
Life Science
Scientific Industries
Water Analysis
Our standard delivery is 3-5 working days (where products are available) Monday to Friday, excluding public holidays when you order by 2pm. Details of our returns and cancellation policy can be found in our Returns Policy & Section 11 of our Terms and Conditions. For more information please contact us on 01924 444 577 or Email Us.
The temperature range is from 5 ℃ above ambient up to +80 ℃ with temperature uniformity of ±0.3 ℃ at 37 ℃. The ES-20/80 has a settable speed control range of 50-400 rpm (in 10rpm increments).
Up to 3 units can be stacked, which enables you to save space. The new clear touchscreen display and simple interface provide a clear and intuitive control of parameters. It also allows data logging, storage and displays over time.
Bluetooth® connectivity to PC allows for data management, data logging, parameter control and profiling in the included software.
Available with 5 interchangeable platforms and stacking kits. Must be ordered separately.
3D rotation, reciprocation and vibration functions all in one product
3D rotation speed: 1 to 100 rpm
Reciprocal 3D rotation: 1 to 360 deg. turning angle
Vibration: 1 to 6∞ turning angle, programmable in a burst of 1 to 5 seconds
Fully programmable sequence of functions
Loads up to 1.0 kg
Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display
Compact, with a low profile and small footprint, and extremely quiet in operation - fits neatly and unobtrusively into the workspace
Smooth, non-slip mat supplied as standard - prevents vessels from slipping
All actions - rotation, reciprocation and vibration - can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application
Reliable stepper motor and sturdy construction will deliver years of consistent performance
Ambient operating temperature range of 4 to 40℃ allows use in cold room or incubator.
Unique construction to deliver exceptional speed control, accuracy and durability under the most extreme environmental conditions
Best-in-class load capacity to maximise efficiency in your incubator.
For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy.
The triple eccentric drive provides smooth, stable shaking motion throughout the entire speed range.
Can be run in -10℃ to 60℃, 100%RH conditions
Construction: Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (1.7 m) easily pass underneath an incubator door or via incubator's utility port
Applications: Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
