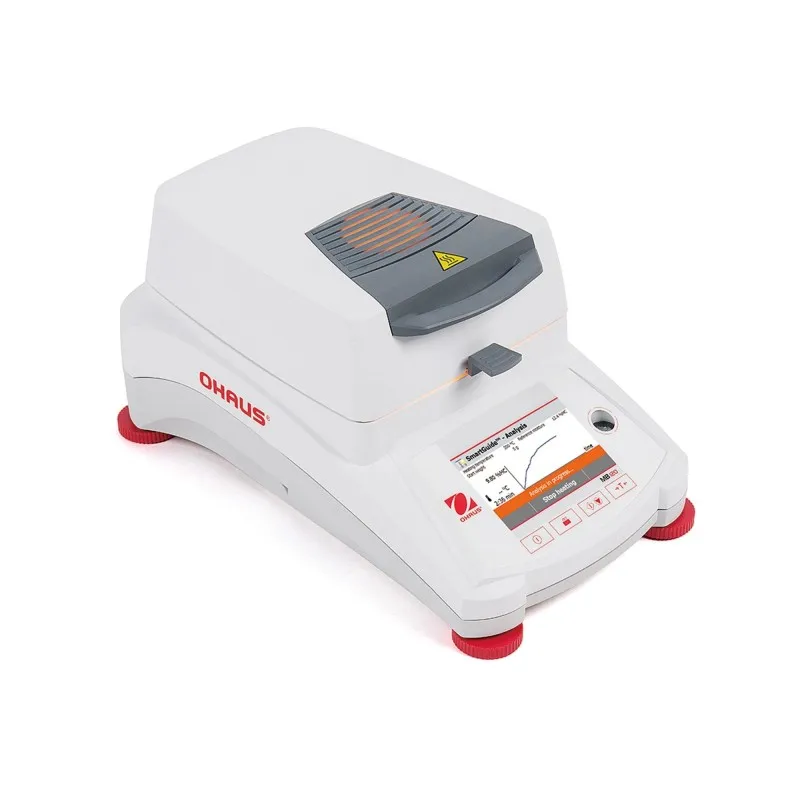

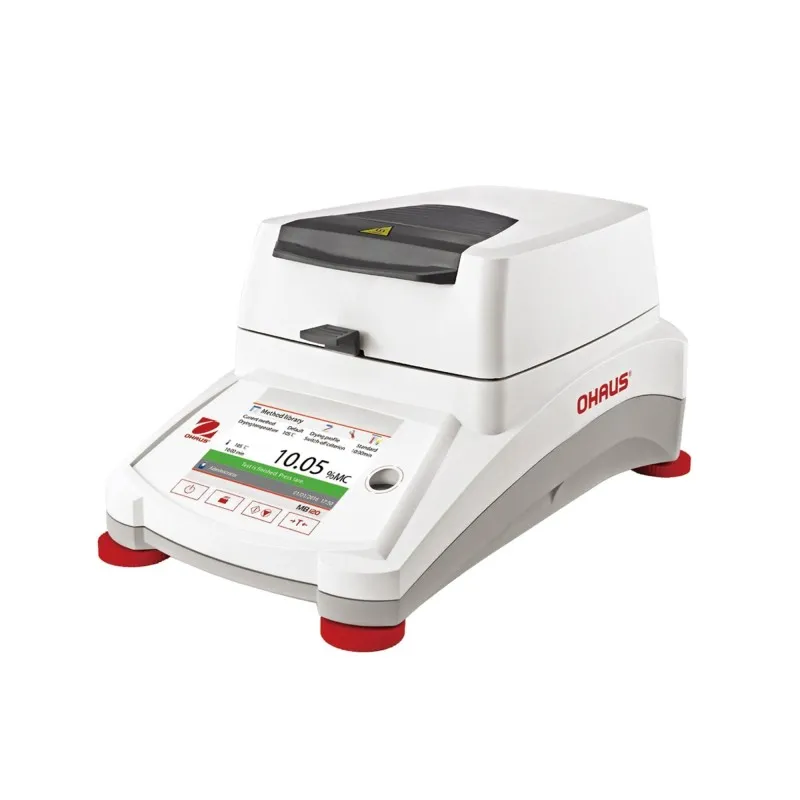

The Ohaus MB120 moisture analyser delivers functionality and precision that you can rely on, and is easy to operate and clean you can test more samples in less time! Advanced features such as a temperature guide help to analyse optimum drying temperature, and methods and results storage allows a statistical analysis of measurements. Three levels of user management ensure data safety - set up and lock temperature settings and method parameters with administrator access.
Benefits
- Seven shut-off criteria (manual, timed, auto-free %/s, auto-free mg/s, A30, A60 and A90)
- Four drying profiles (standard, fast, ramp and step)
- Storage up to 100 methods and 1000 test results for all methods
- 40∞C to 230∞C heating temperature range (1∞C increments)
- Construction: Metal base, ABS top housing, halogen heat source,
- Full-Color 4.3 in Touchscreen WQVGA Display
- Weighing units: Gram, %MC, %RG, %D
- Weighing applications: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Precisely controlled halogen heating dries samples uniformly, producing repeatable results of 0.01% readability. Four drying profiles & seven shut-off criteria help to perform customized sample tests.
MB120's Temperature Guide analyses a sample and determines the optimal drying temperature. Store up to 100 drying methods for easy recall and up to 1000 total results for statistical analysis.
The MB120 features a removable panhandler and sample chamber for easy cleaning. Operating the MB120 is intuitive simply follow the guided instructions on the touchscreen display.
| Specifications | MB120 |
| †Capacity | 120g |
| †Readability | 0.01 %/0.001 g |
| †Repeatability (Std Dev) (g) | 0.05 % (3 g sample) 0.015 % (10 g sample) |
| Output | RS232, USB host, USB device |
| Heating Element | Halogen |
| Temperature Range | 40?¢ƒˆ?…—?…?230 ∞C |
| Power | 120 or 240 VAC 50/60 Hz |
| Operating Temperature Range | 10?¢ƒˆ?…—?…?40 ∞C |
| Display Type | 109 mm, QVGA, TFT touch screen |
| Display Results | %moisture, %solids, %regain, time, temperature, weight, method name, drying curve and statistics |
| Pan Size | 90 mm |
| Dimensions (W x H x D) | 210 ?¢‡ˆ?…>= 180 ?¢‡ˆ?…>= 350 mm |
| Net Weight | 5.23 kg |
| Shipping Weight | 8.35 kg |
