Standardised and easy-to-use, sturdy and waterproof, as well as sophisticated and versatile.

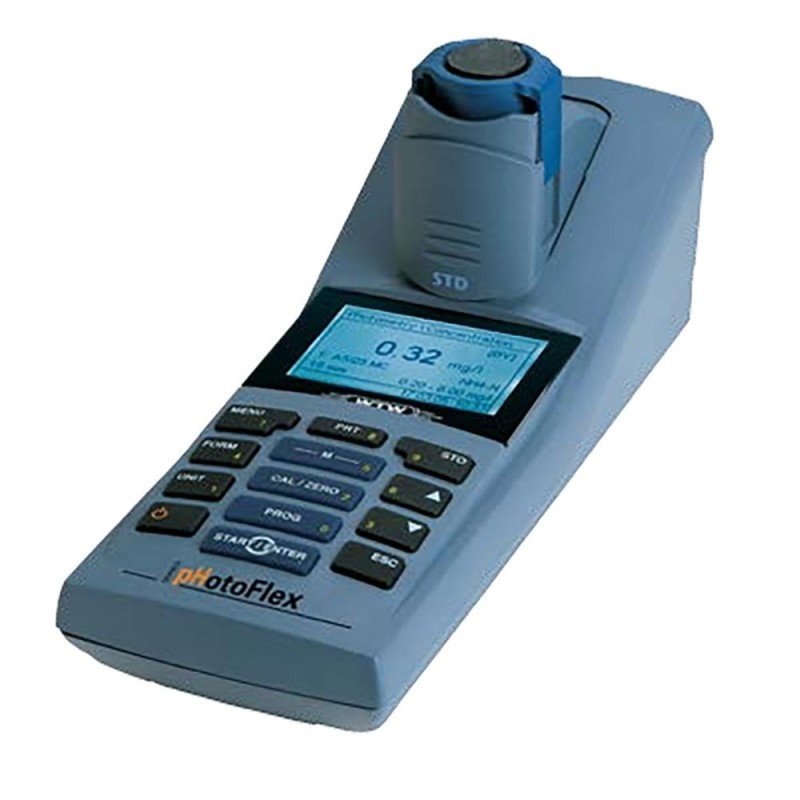

The pHotoFlex is used for the testing of water, so anything from production solutions, drinks to effluents. The instrument allows you to measure pH, Turbidity (suspended solids), as well as  COD, Ammonium, Nitrate and Phosphate, so is ideal for testing effluents. Any food or drink production site. Most if not all, production sites test their effluent discharges.

Features

• More than 150 programs for routine analysis
• Test kits for every demand: from high precisely to easy, fast and economic
• Storage with Identification Number (ID)
• Data filter for easy selection of data sets
• Electrochemical pH-measurement from pH 0–16.00 (± 0.01) for Standard DIN pH-electrodes
• Automatic Temperature Compensation (ATC)
• Redox Measurement
• 1-3 point calibration with calibration interval setting and calibration protocol
• IR light source acc. to DIN 27027/ISO 7027
• Turbidity measurement range from 0.01-1100 NTU/FNU providing drinking water accuracy
• Longterm stable AMCO Clear Standards with ±1% manufacturing accuracy
• The most versatile colorimeter for field and lab

Technical Specifications

Order-Nr.  pHotoFlex® Instrument (SET)	251 110 (251 210)
Photometric Measurement	Transmission (%T), Absorption, Concentration
pH-Measurement (±0.01 pH)/ Redox	●
Turbidity Measurement IR acc. DIN /ISO	●
Calibration Interval /-protocol	●
Programs	150
Special programs with pH and Temperature	NH3, CO2
User-defined programs via LSdata Software	100
Data Sets (with Identification number ID)	1000
Field Sets with Accessories	optional
Optics	power saving LED + optical Filters: 436, 517, 557, 594, 610, 690 nm, 0.005 Abs reproducibility, < 2 nm wavelength accuracy
Cell sizes	16 mm round ( H:91-104 mm); 28 mm
Batteries	4 AA for approx. 3000 measurements
Interface, Update via Internet	RS232 + cable AK 540 B (Accessories)
LSdata PC Software	included in Sets or individual package optional
Lab use: optional Accessories	LabStation with barcode option via Scanner, incl. recharg. batteries and PC software LSdata, cable
Recharg. batteries + universal power supply	optional
Certificates	CE/ETLus/cETL
